ABOUT PRODUCT

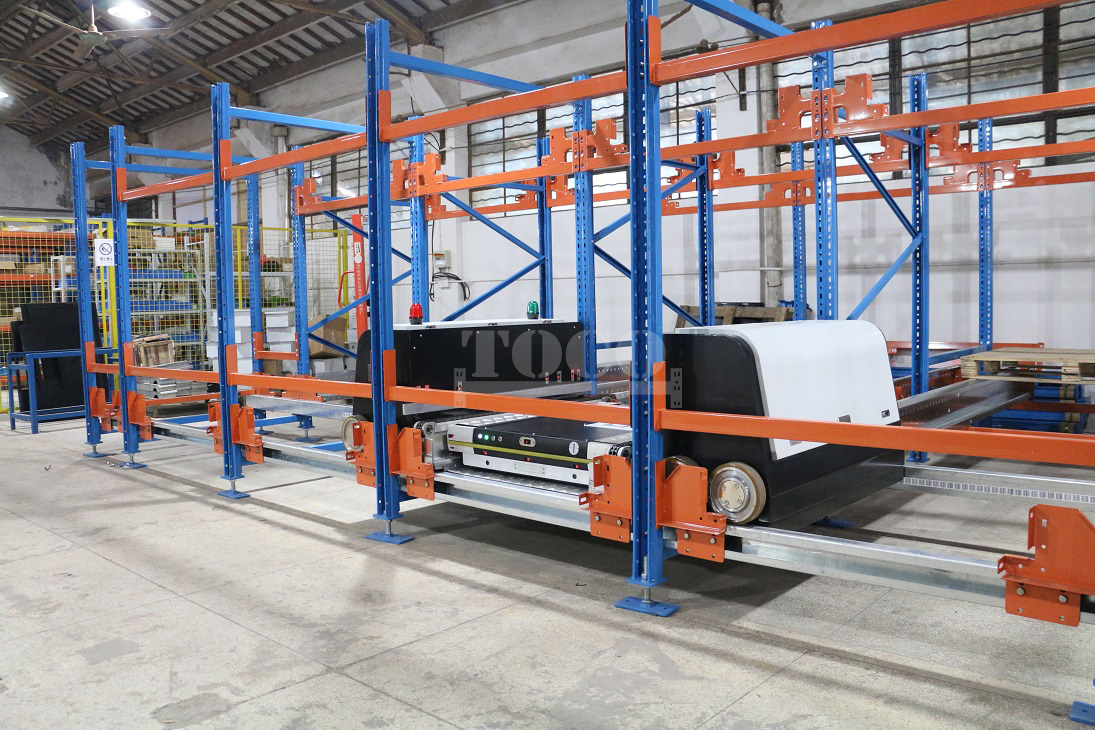

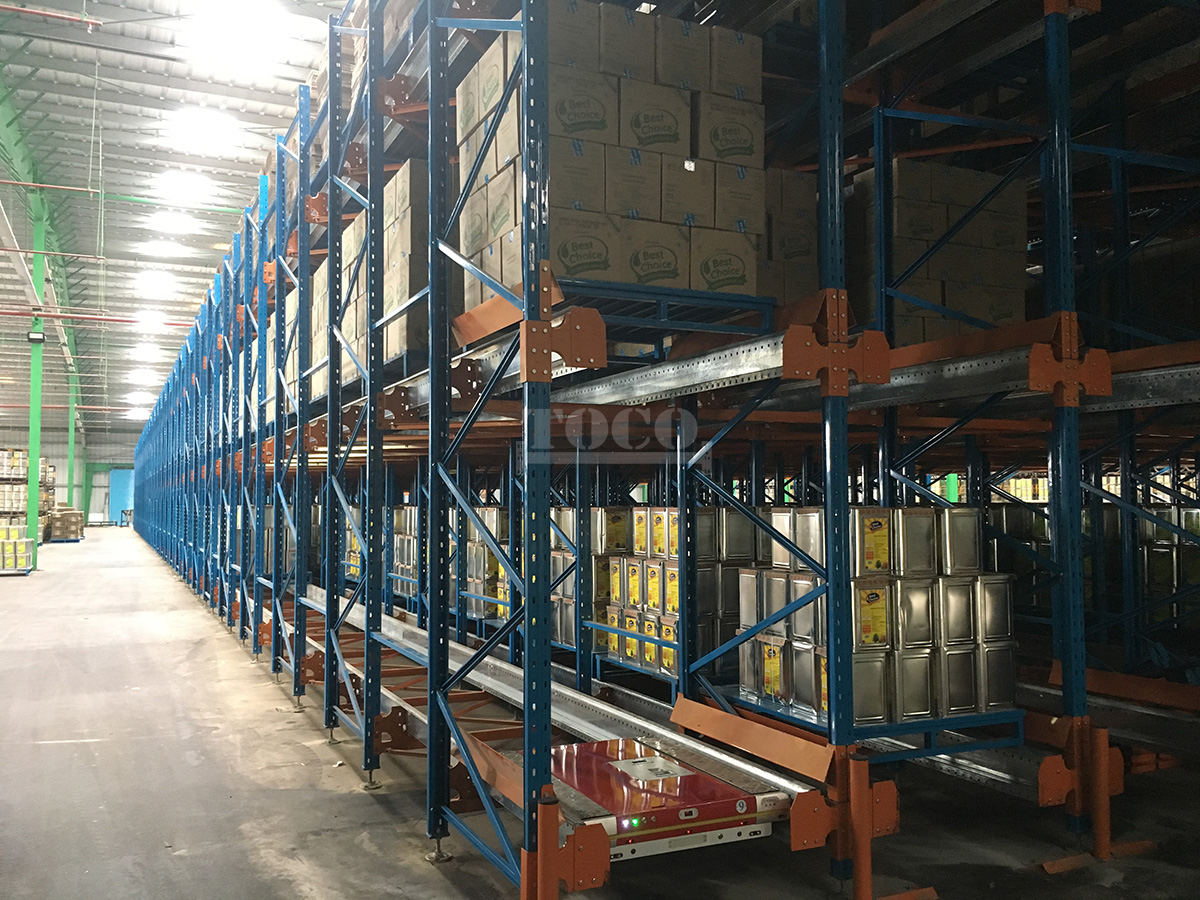

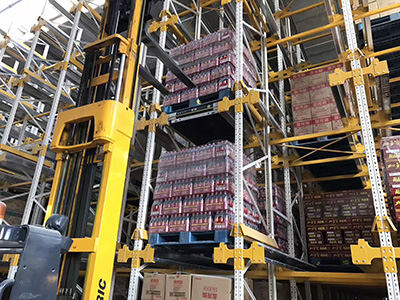

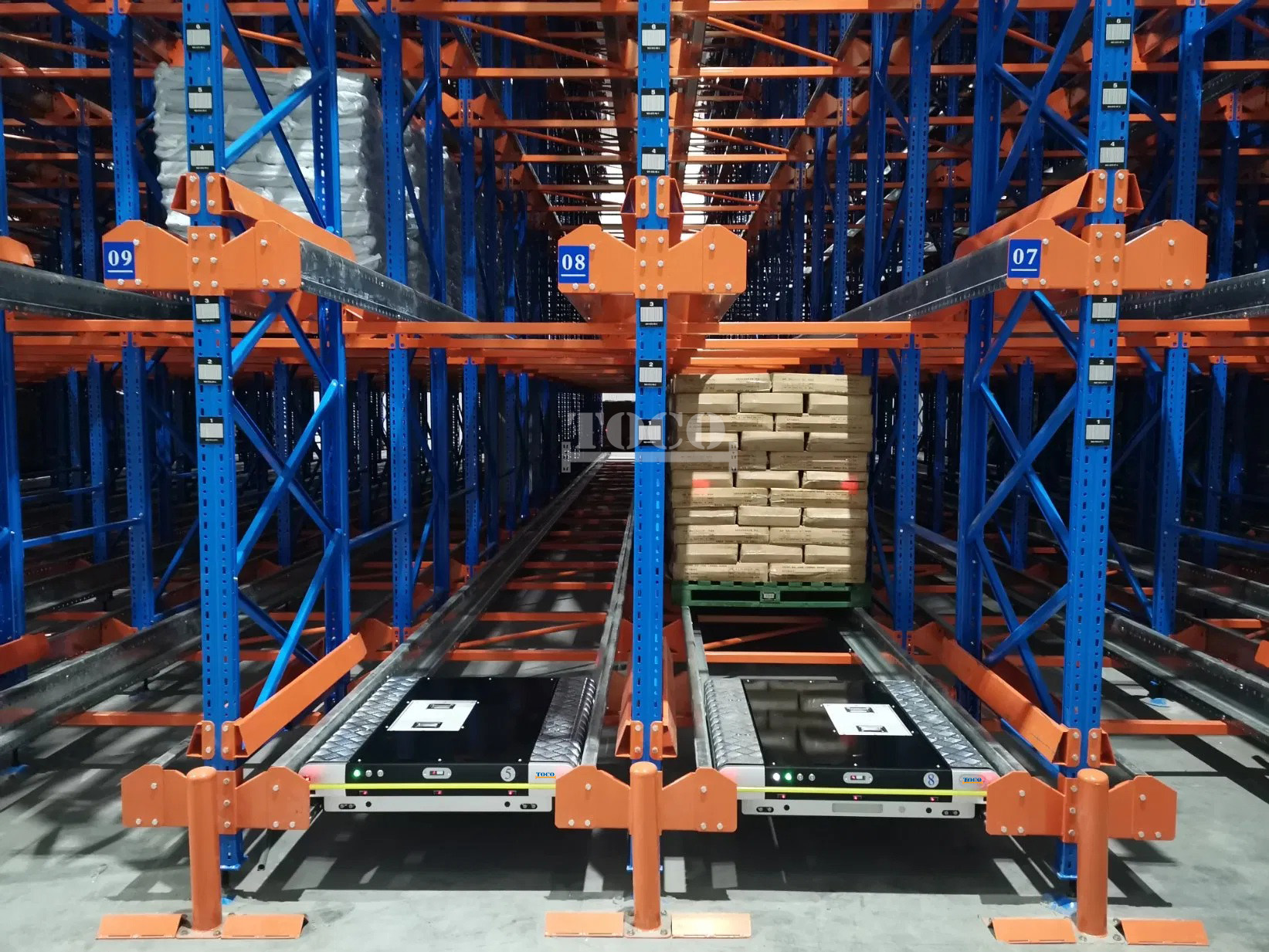

The Pallet Shuttle racking is a semi-automated high-density storage system in which a radio shuttle with an electric motor runs along rails within the storage channels to deposit and retrieve pallets. The process is controlled by an operator, who places the shuttle in the racking with a forklift and a remote control.
This compact storage system have more pallets in depth than drive in racking, and increase inbound and outbound flows, and more SKUs to be stored. The shuttles can also run in four directions, which forms an fully automated shuttle system coordinated with other equipment.
The pallet shuttles can be supplied separately, or OEM for your local market!

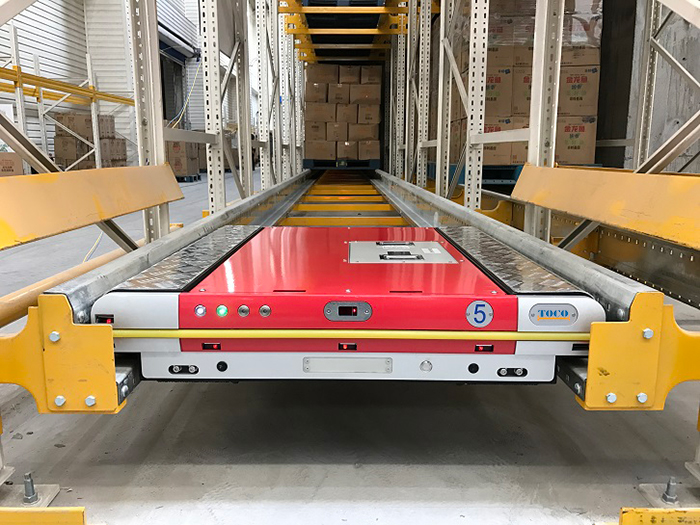

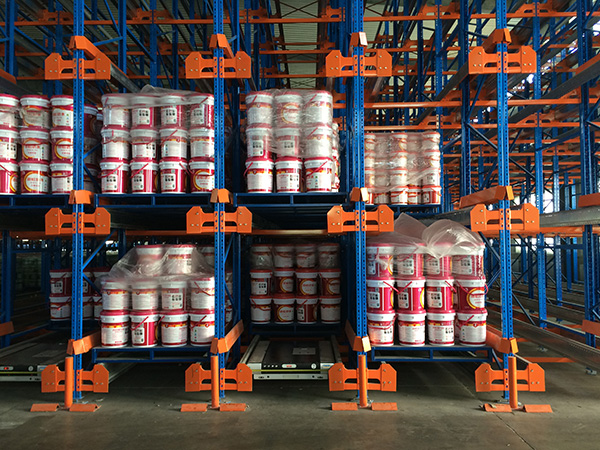

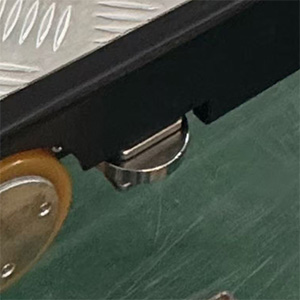

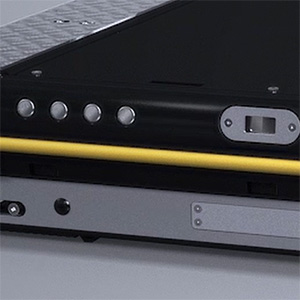

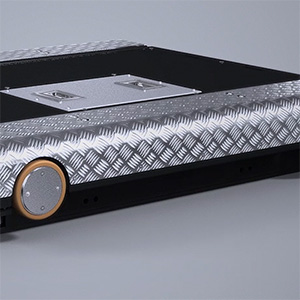

FEATURES OF PALLET SHUTTLE RACKING SYSTEM

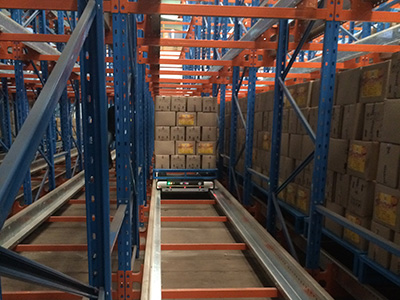

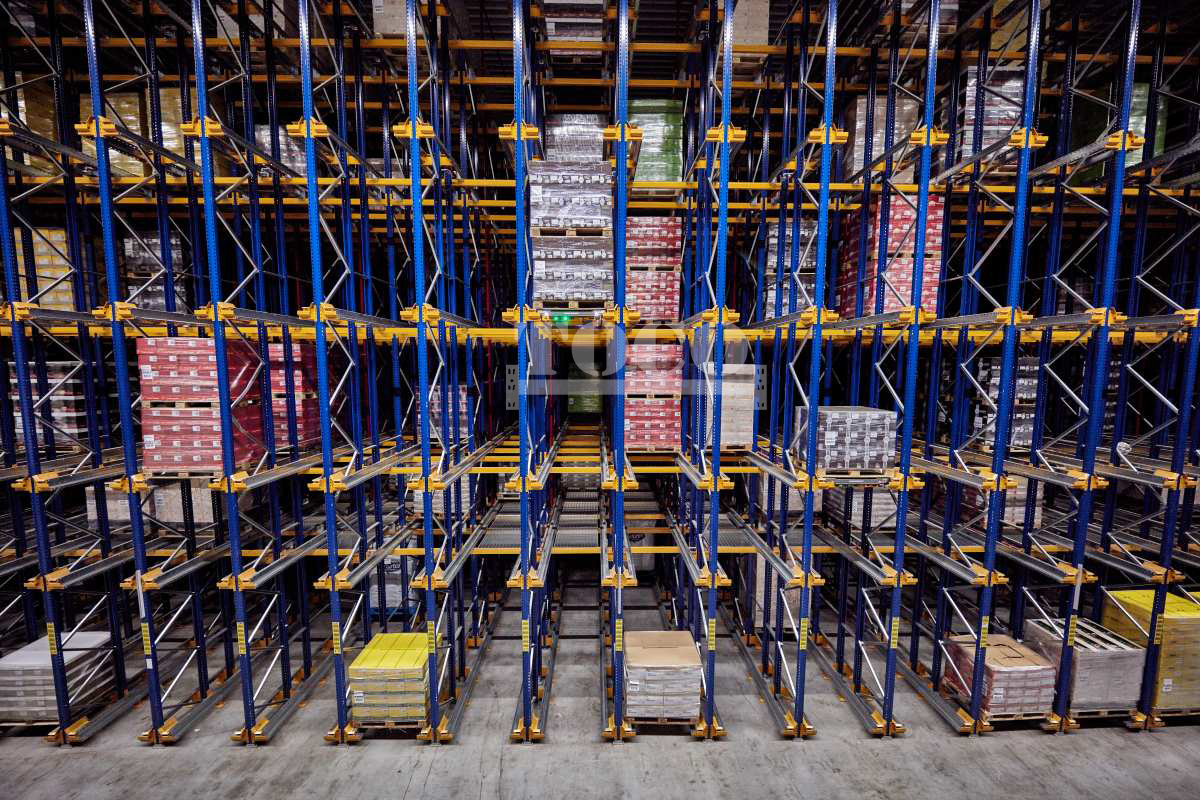

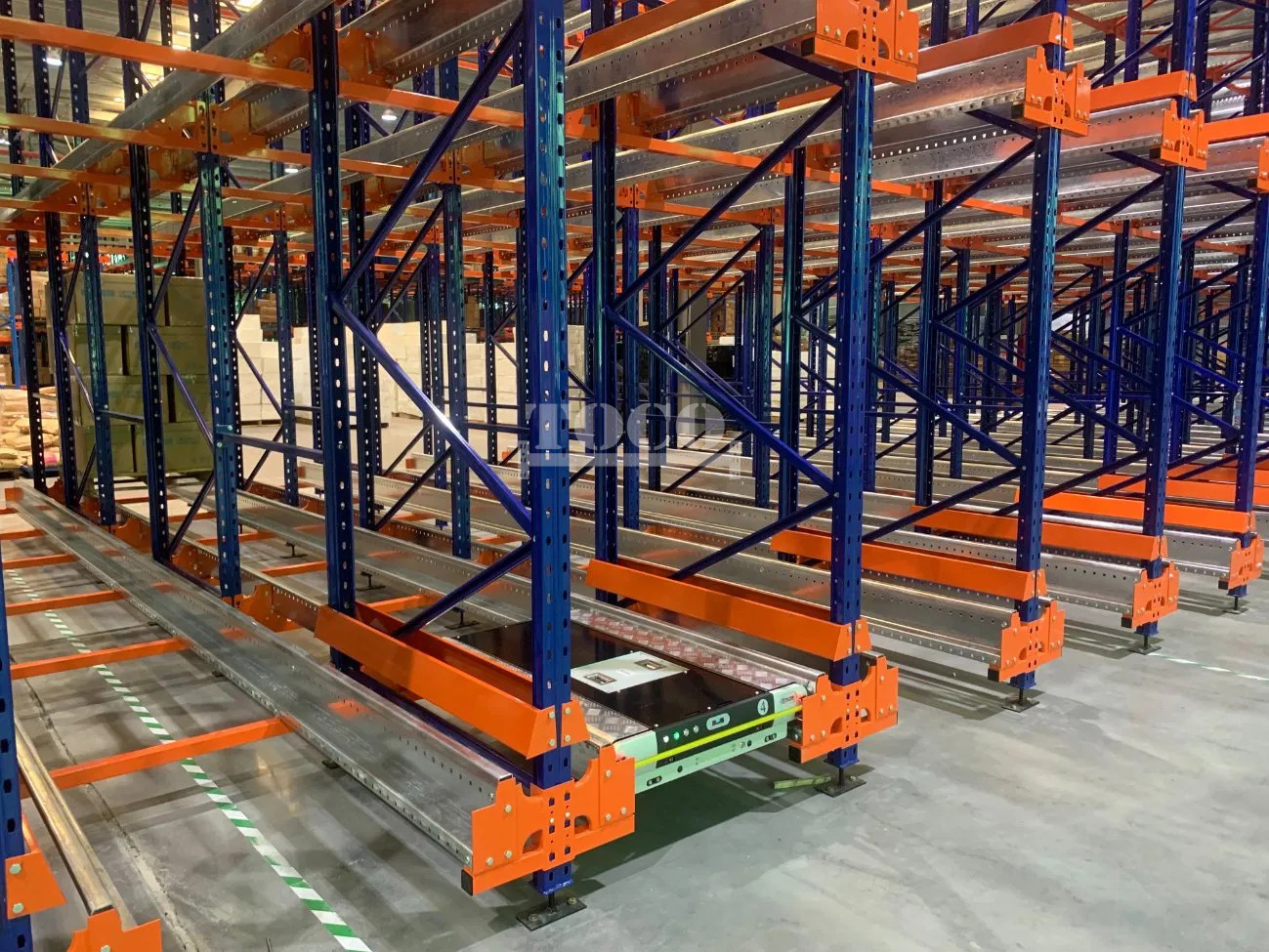

GALLERY

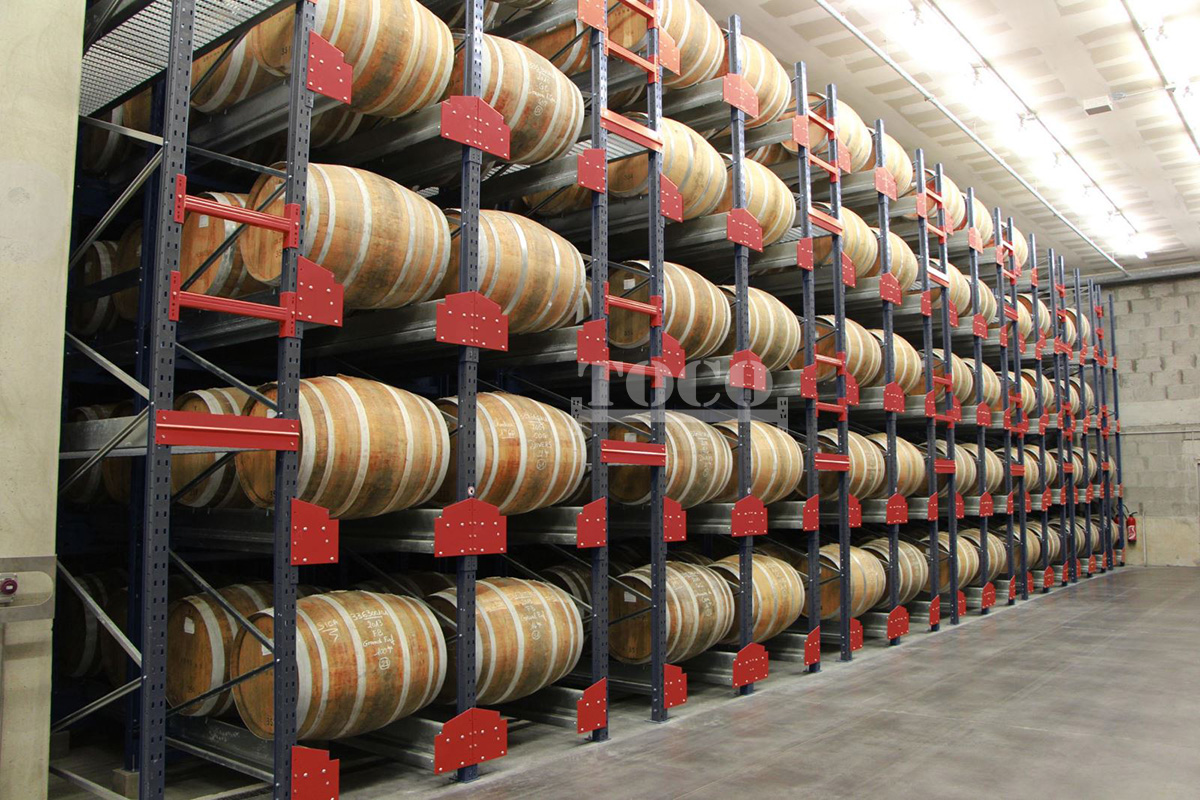

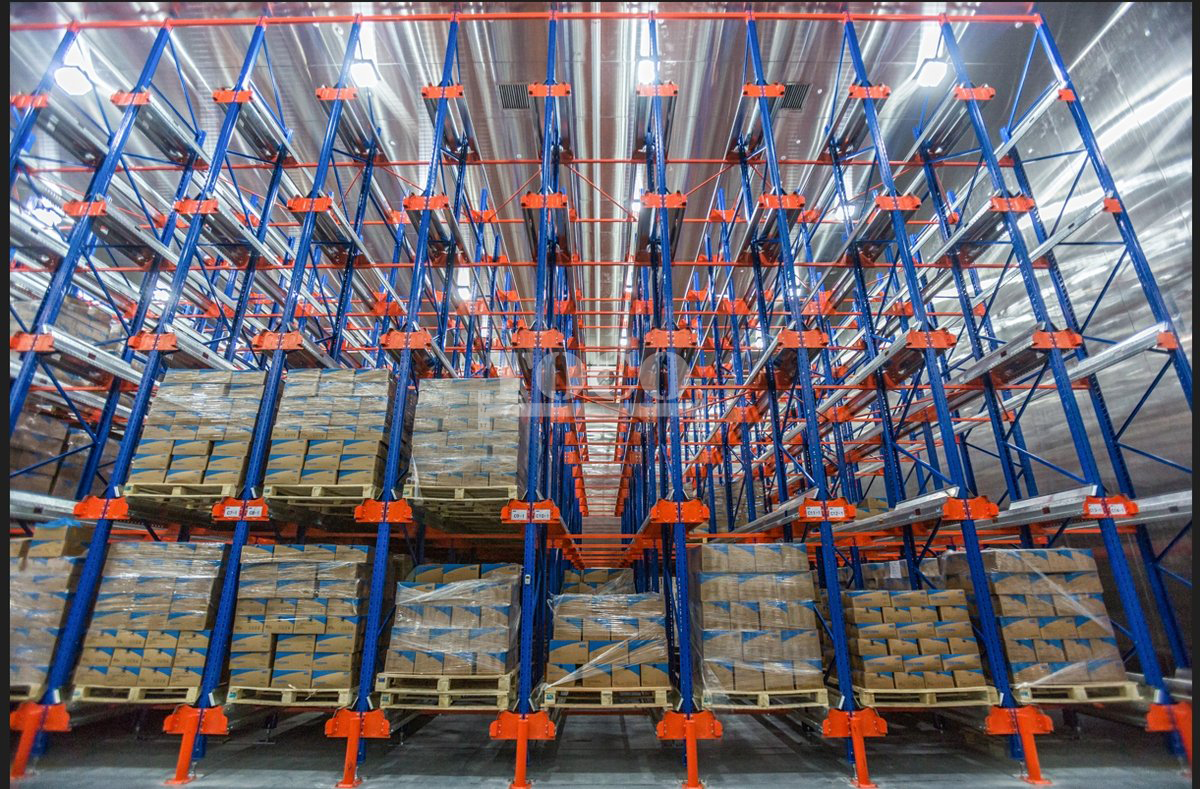

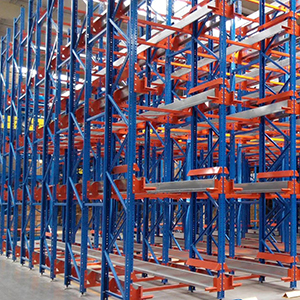

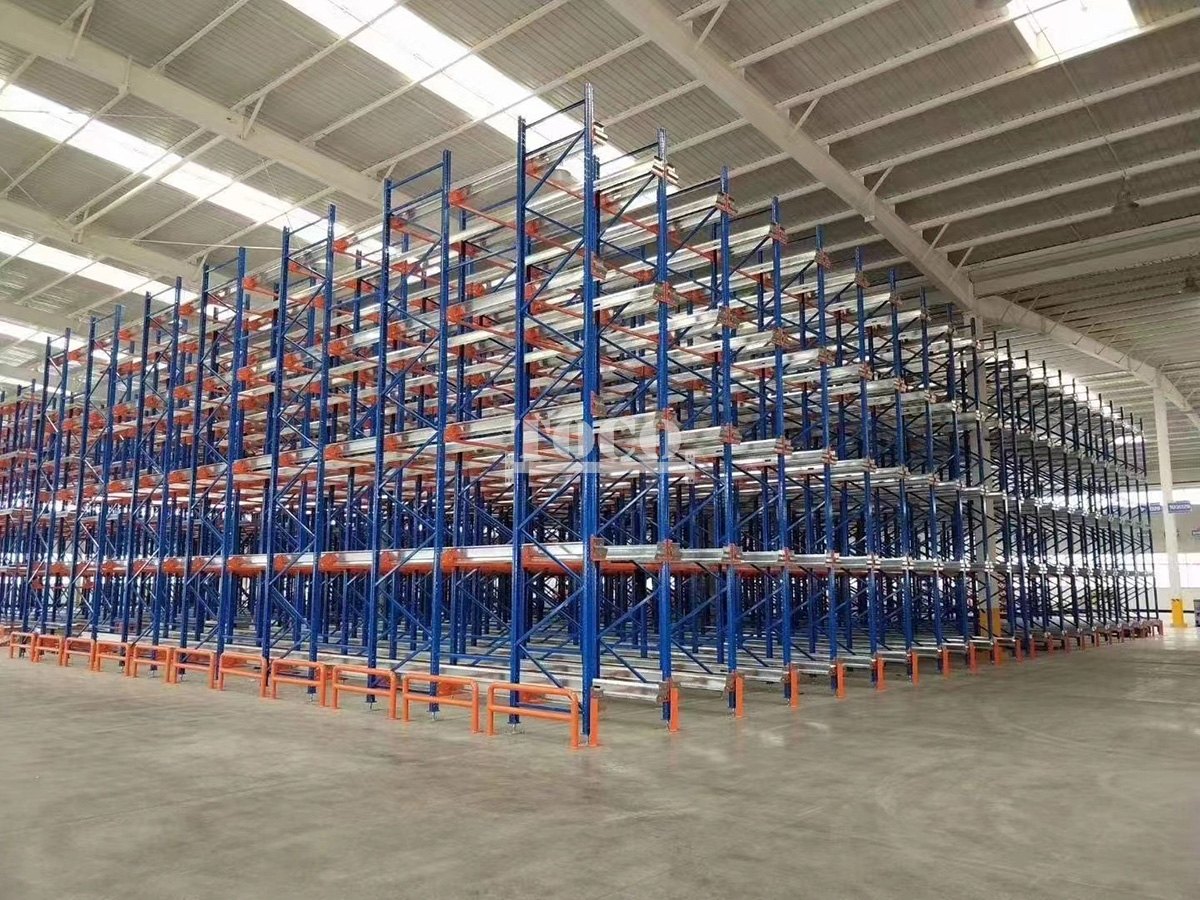

PALLET SHUTTLE SPECIFICATIONS
| Shuttle Performance | Motors | ||||
| Load Speed | 0.8m/s | Travelling Power | 48VDC, 600W | ||
| Empty Speed | 1.2m/s | Hoisting Power | 48VDC, 500W | ||

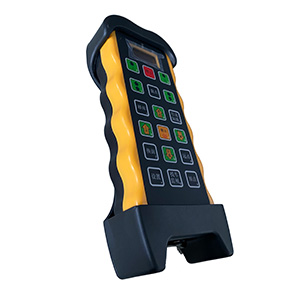

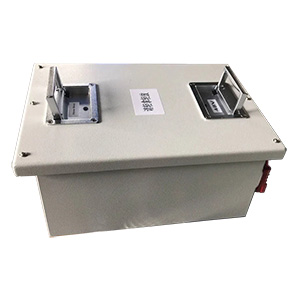

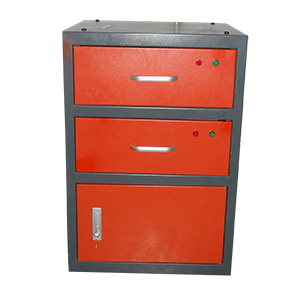

| Working Duration | Min. 8 hours | Remote Control | |||
| Noise | < 60db | Type | IMT Customized | ||
| Control | S7-1200 PLC | Display | LCD | ||
| Power Supply | Language | CN & EN | |||
| Type | Lithium Battery | Water Proof | IP65 | ||
| Voltage | 48V | Work Tempreature | -30℃ to +50℃ | ||
| Capacity | 30AH | Work Distance | 100M | ||
| Charging Time | 3 hours | Others | |||
| Maintenance | Free | Working Temperature | 0℃ to +50℃ | ||
| Painting | Humidity | 5% to 95% No condensation | |||
| Chassis | Black / Red | Safety Measures | Buffer strips & Detection Sensors | ||
| Battery Cabinet | Grey | ||||
PALLET SHUTTLE MODELS
| MODEL | TYPE | LOAD CAPACITY | PALLET SIZES |  | |||
| TPS1200ST | Standard | 1500KG | 1200MM FORK ENTRY ( 1000 - 1400MM WIDTH PALELTS ACCEPTABLE ) | | |||
| TPS1200HD | Heavy Duty | 2000KG | | ||||
| TPS1200CS | Cold Store -30℃ | 1500KG | | ||||
| TPS1200NT | Network | 1500KG | | ||||
| TPS1200AT | ASRS | 1500KG | | ||||
| TOCO PROVIDE SHUTTLES COMPATIBLE WITH YOUR EXISTING RACKING SYSTEM ! | | ||||||
PALLET SHUTTLE RACK APPLICATIONS

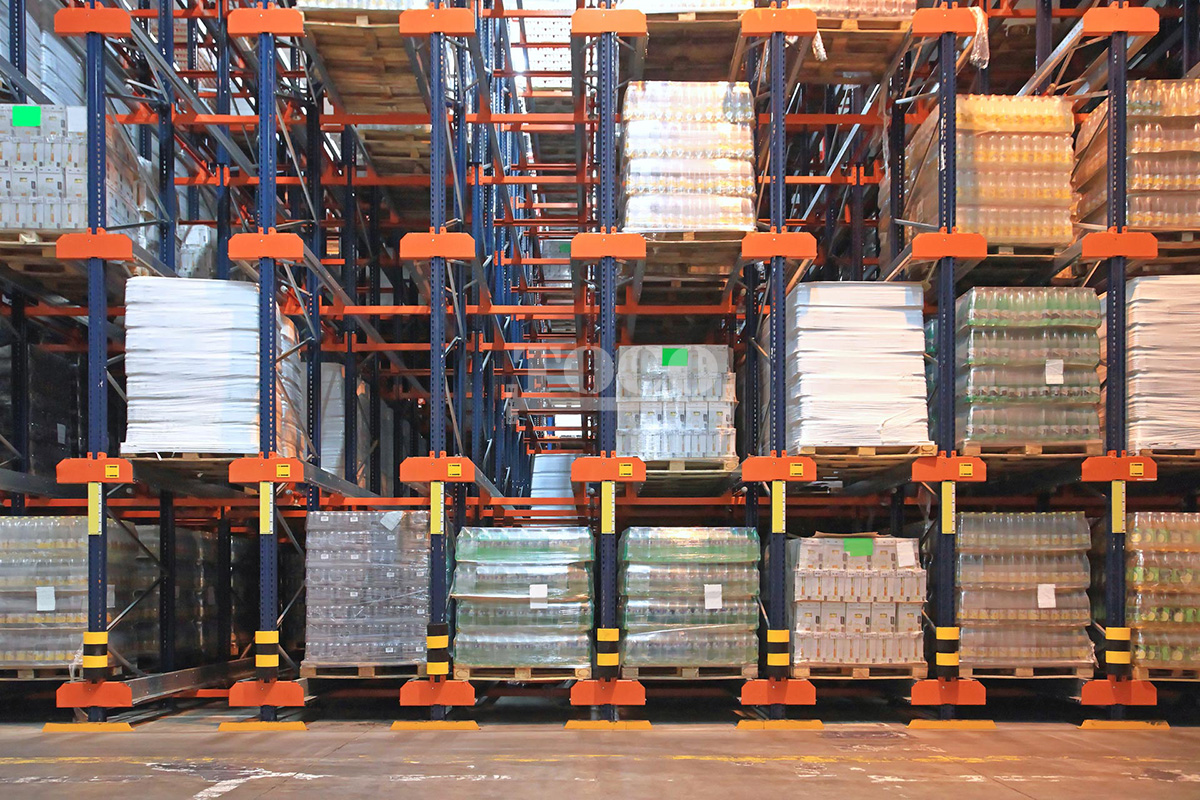

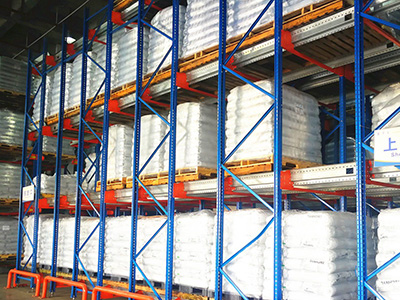

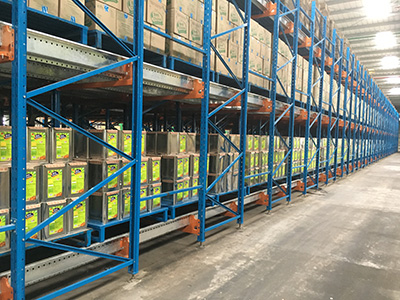

Many pallets per SKU
Great for storage of many pallets with same SKUs, one channell per SKU.

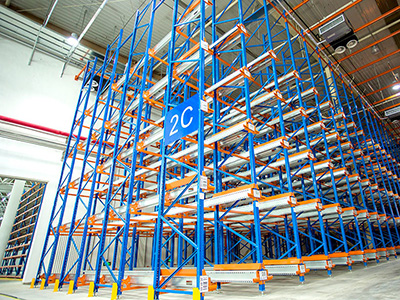

Warehouse Storage Buffer
Used as buffer storage, the FIFO storage principle is ideal for this application.

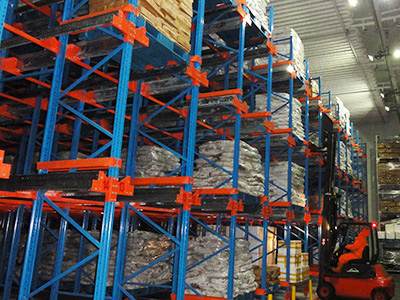

Cold Storage
This compact storage solution with minimum operations by workers is perfect both in costs and efficiency.

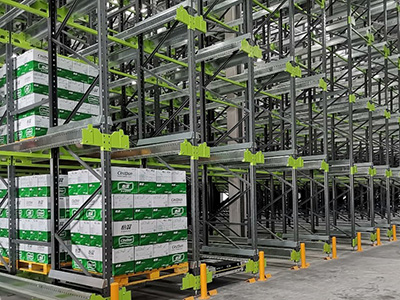

Foods and Beverages Industry
Foods and Beverages are naturally with less SKUs and large volumes. The pallet shuttle rack is the right solution for these industries.

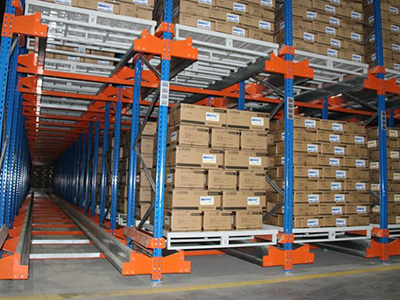

Pharmaceuticals Storage and Distribution
The pallet shuttle rack is configured first in first out method, which is great for large quantity of pallets, and no dated pallets left.

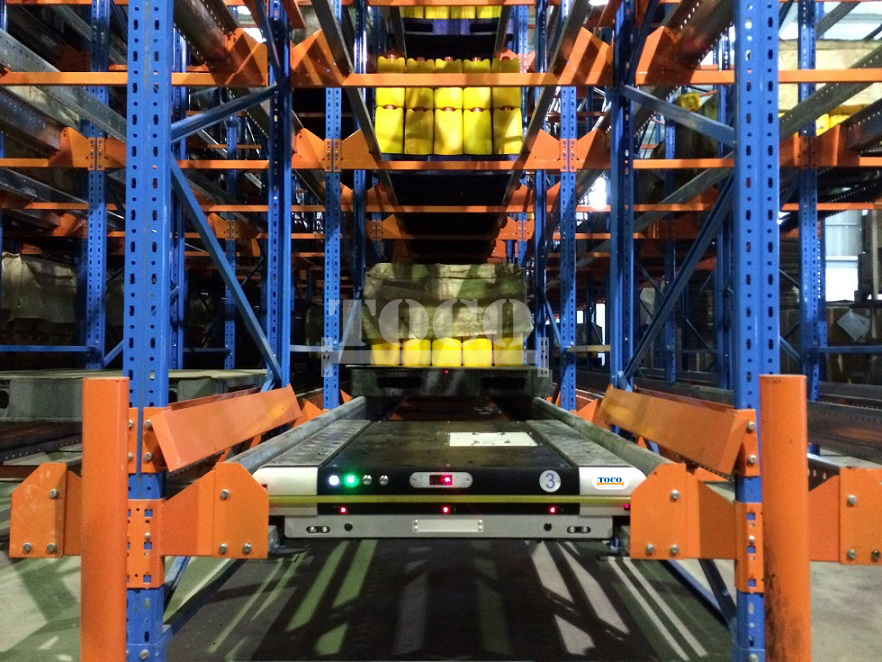

OPERATIONS OF THE PALLET SHUTTLE RACKING SYSTEM

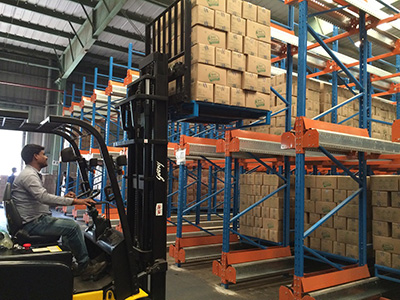

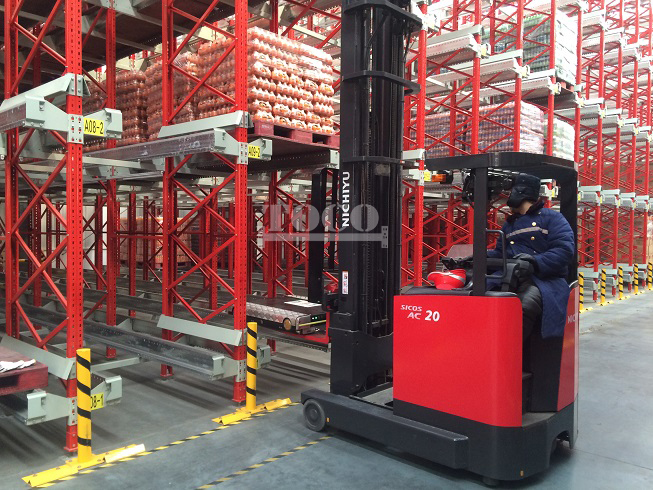

A semi automated storage solution by the shuttles and forklifts with an operator.

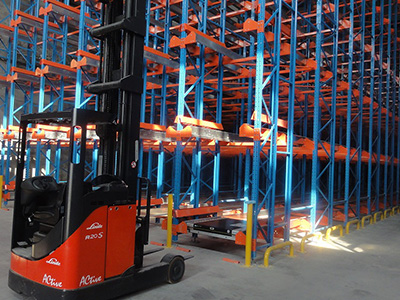

1 - The shuttle is placed on the track
2 - The pallet is put at the entrance of the same track
3 - The pallet is taken to the storage location by the shuttle
4 - The whole channel is filled with pallets
5 - Pallets retrieval from the storage channels, which is opposite to the storage process.
FUNCTIONS OF THE PALLET SHUTTLES
Functions with one-press button for easy daily operation.

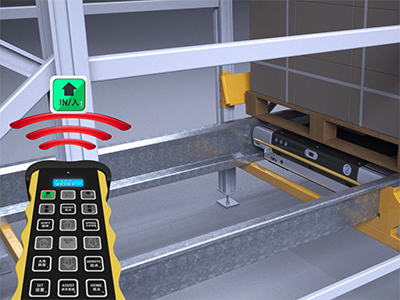

SINGLE PALLET IN
The shuttle car moves one single pallet into storage.

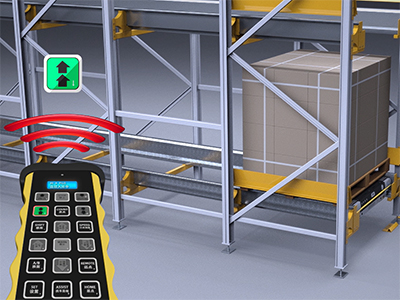

CONTINOUS PALLETS IN

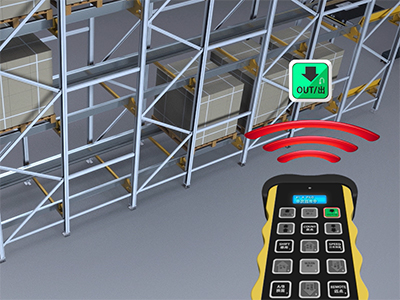

SINGLE PALLET OUT

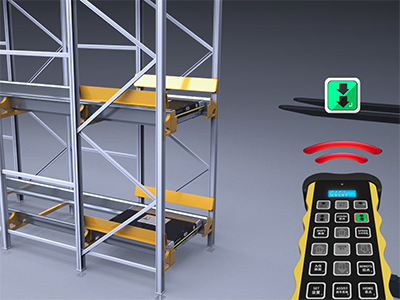

CONTINOUS PALLETS OUT

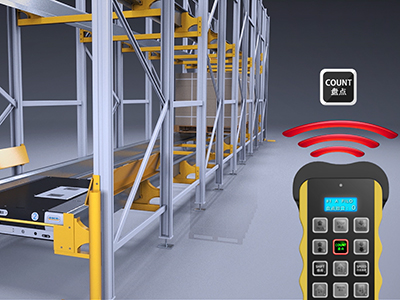

PALLETS COUNT
PALLET SHUTTLE RACK COMPONENTS

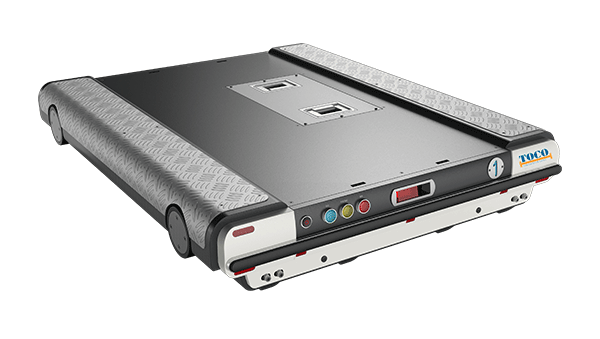

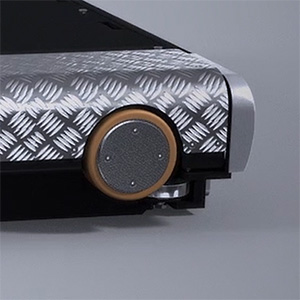

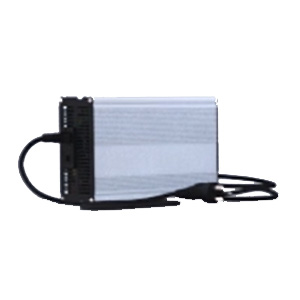

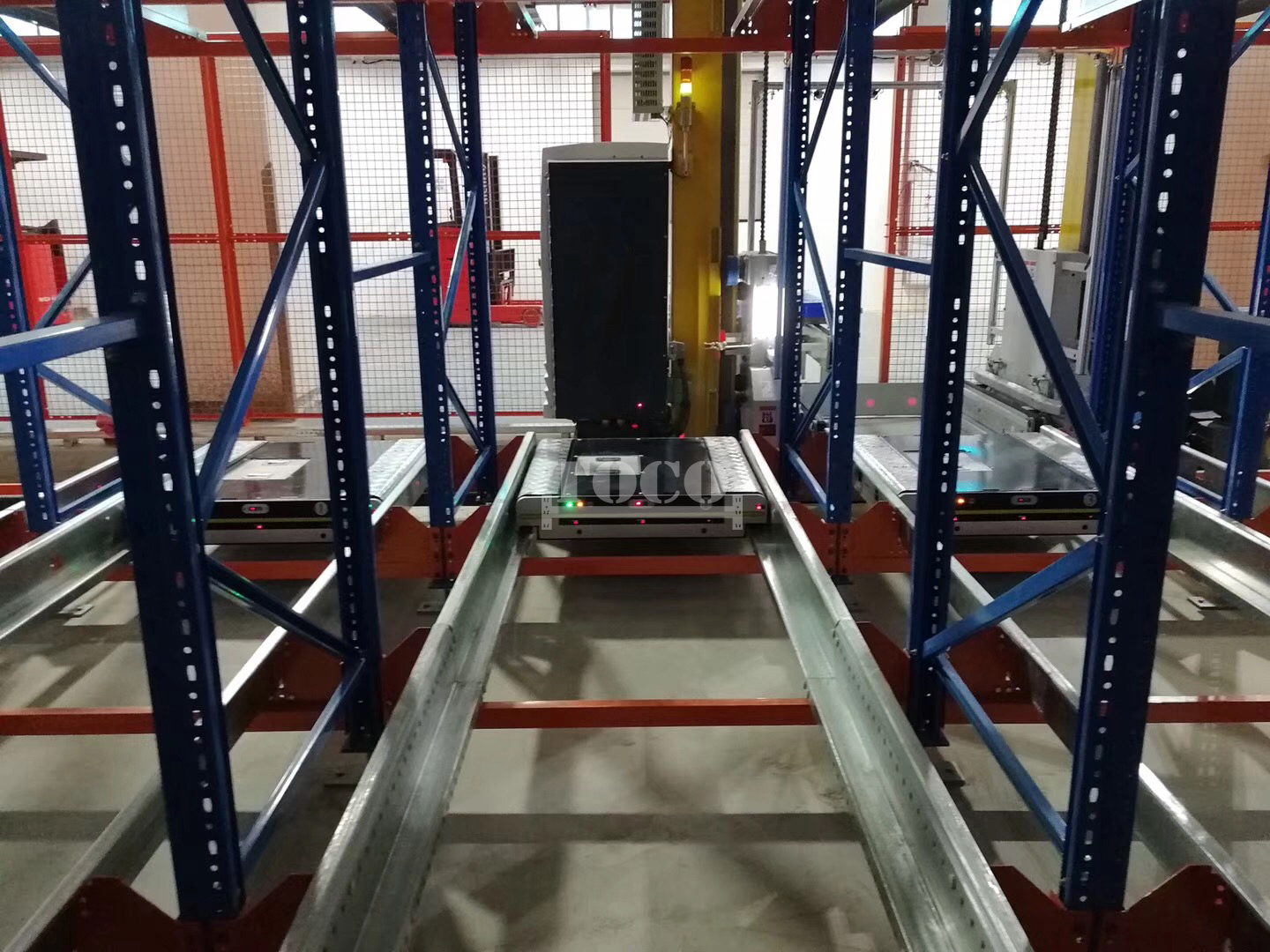

Shuttle

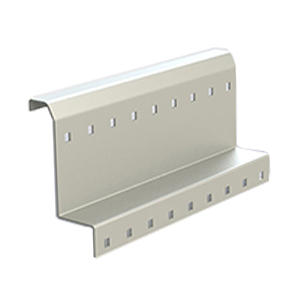

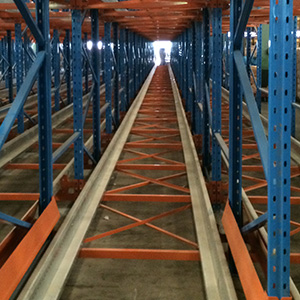

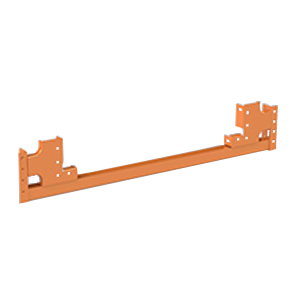

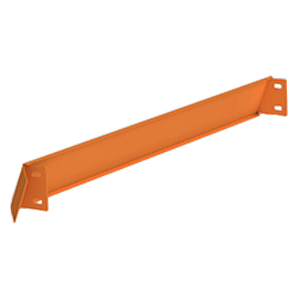

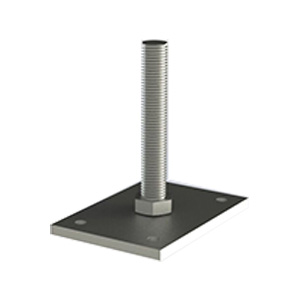

Racking Components

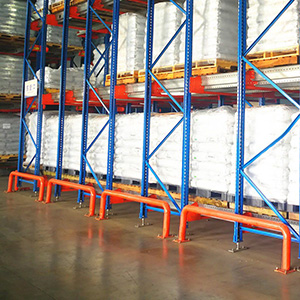

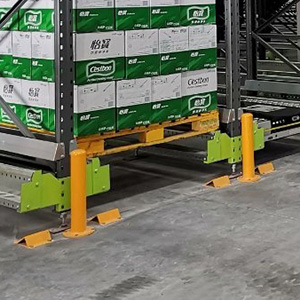

Safety Protection
FAQs
PALLET SHUTTLE RACKING SYSTEM
OPERATION OF PALLET SHUTTLE
TECHNICAL SPECIFICATIONS OF PALLET SHUTTLE
General Trade Terms If I want to order from TOCO
What does TOCO’s after-sales service include?
Downloadable Contents
Request A Quote
Inquiry Sheet for pallet shuttle racking
