ABOUT PRODUCT
Selective pallet racking is the most widely used storage solution, designed for direct access to every pallet.
Its open-frame structure features horizontal load beams and upright frames, allowing easy forklift maneuverability and instant SKU retrieval. Adjustable beam heights accommodate diverse product sizes, while heavy-duty steel construction ensures durability for medium- to high-volume warehouses.

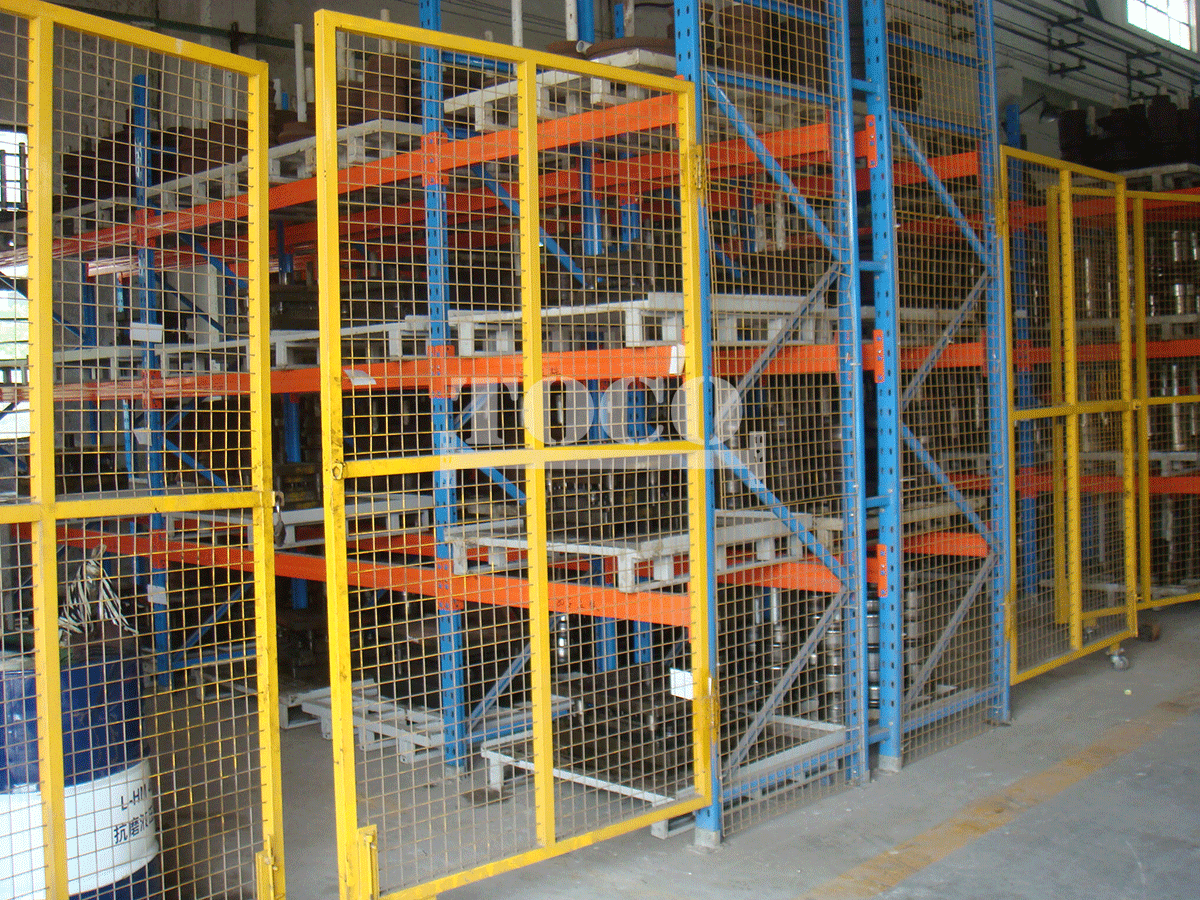

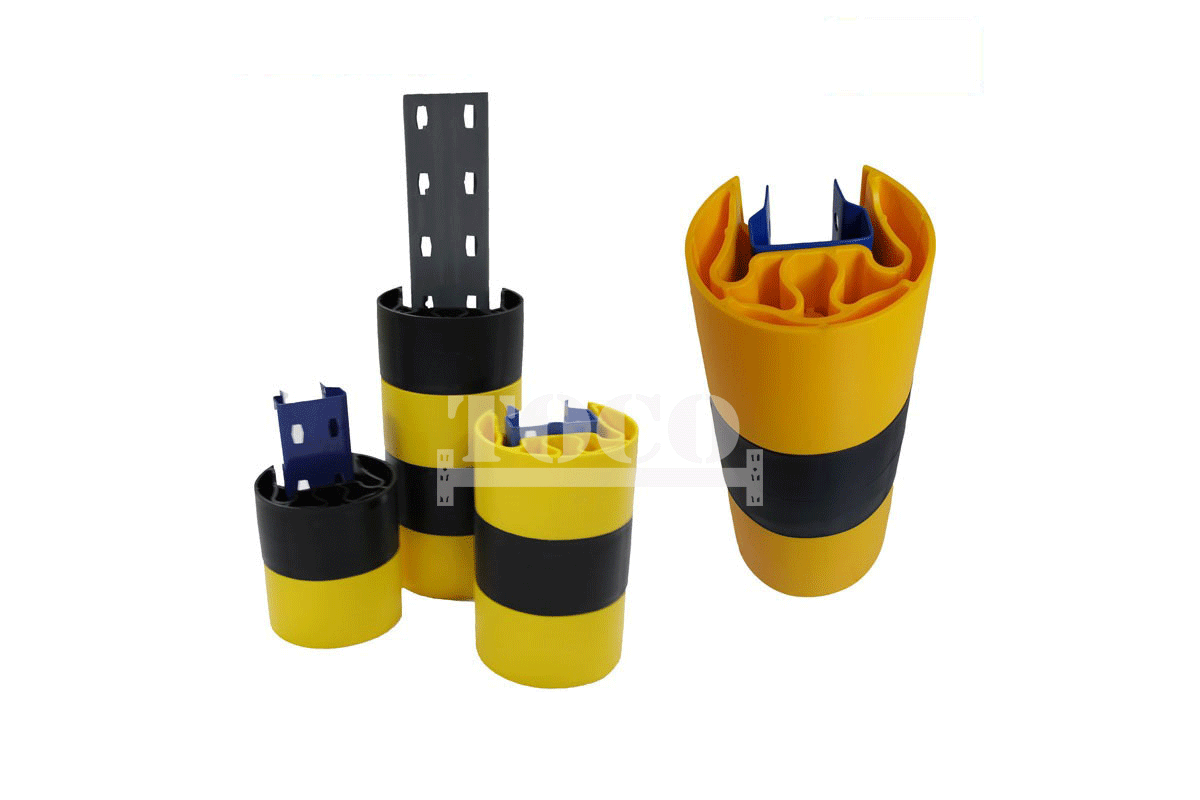

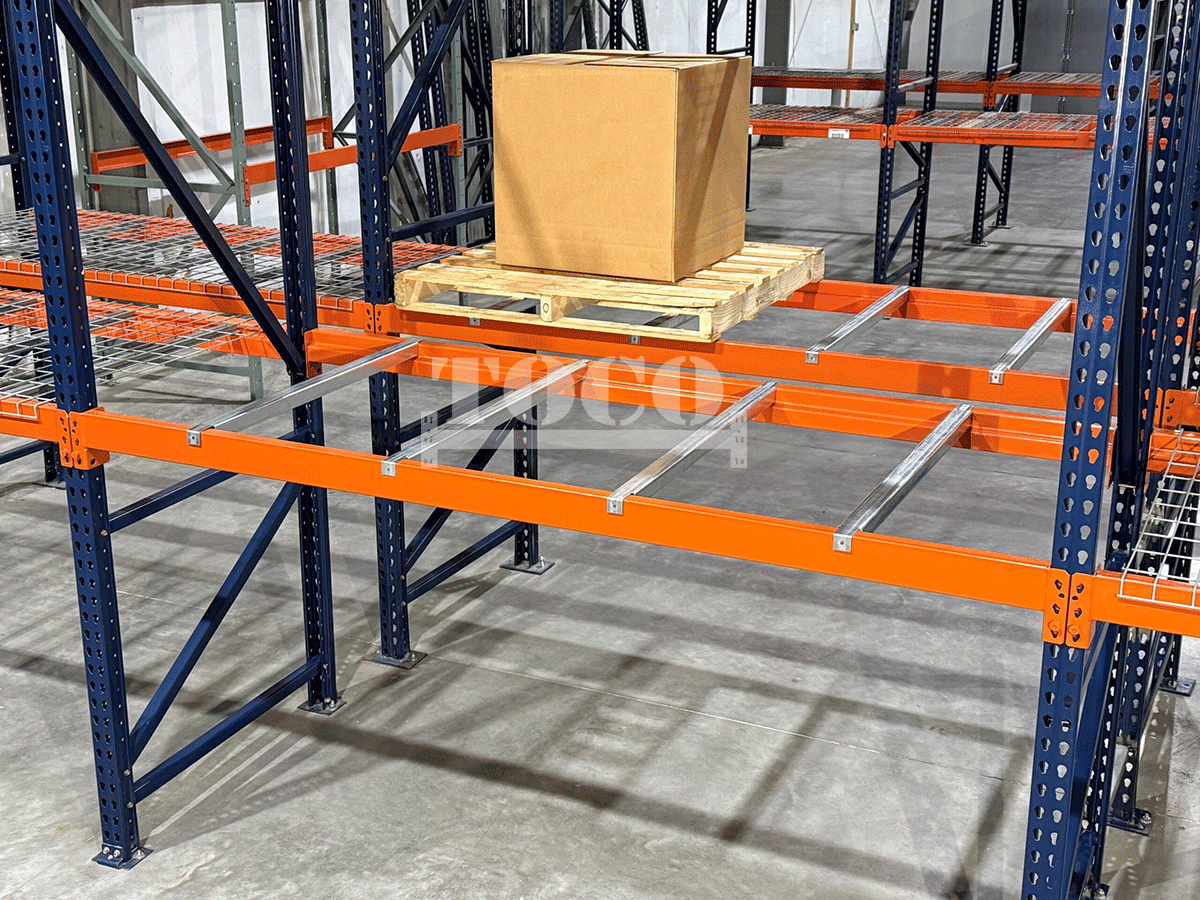

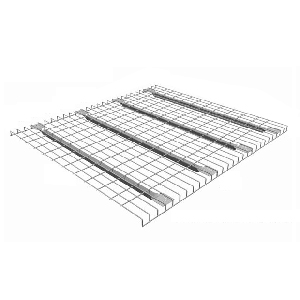

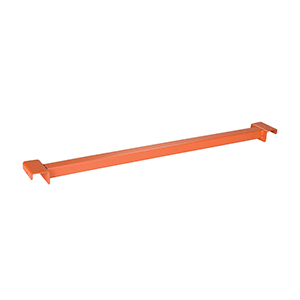

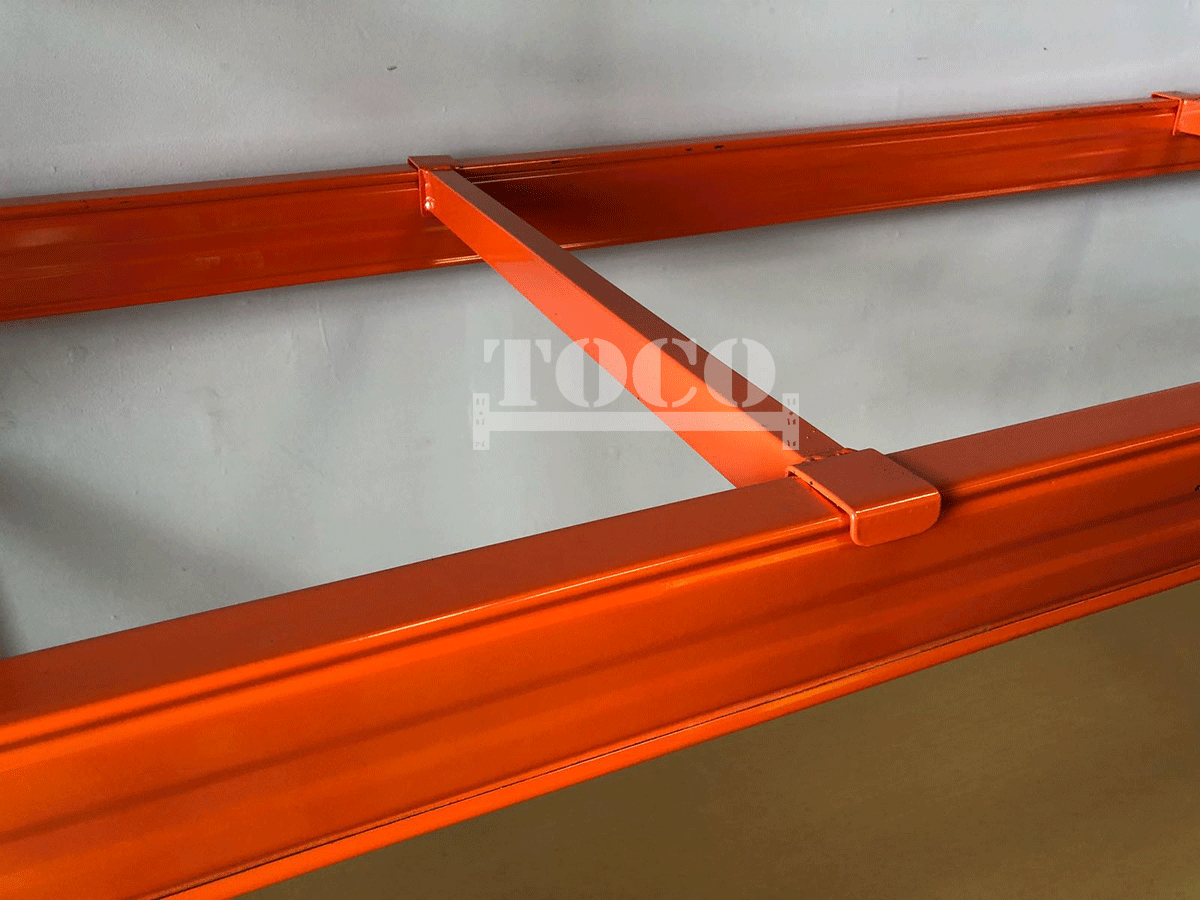

Ideal for facilities requiring frequent inventory rotation, it supports both first-in-first-out (FIFO) and random-access workflows. Suitable for retail, distribution centers, and manufacturing, this system balances storage density with operational efficiency. Optional safety accessories like wire mesh decking, support bar, or column protectors etc. enhance stability and compliance with warehouse safety standards.
FEATURES OF SELECTIVE PALLET RACKING

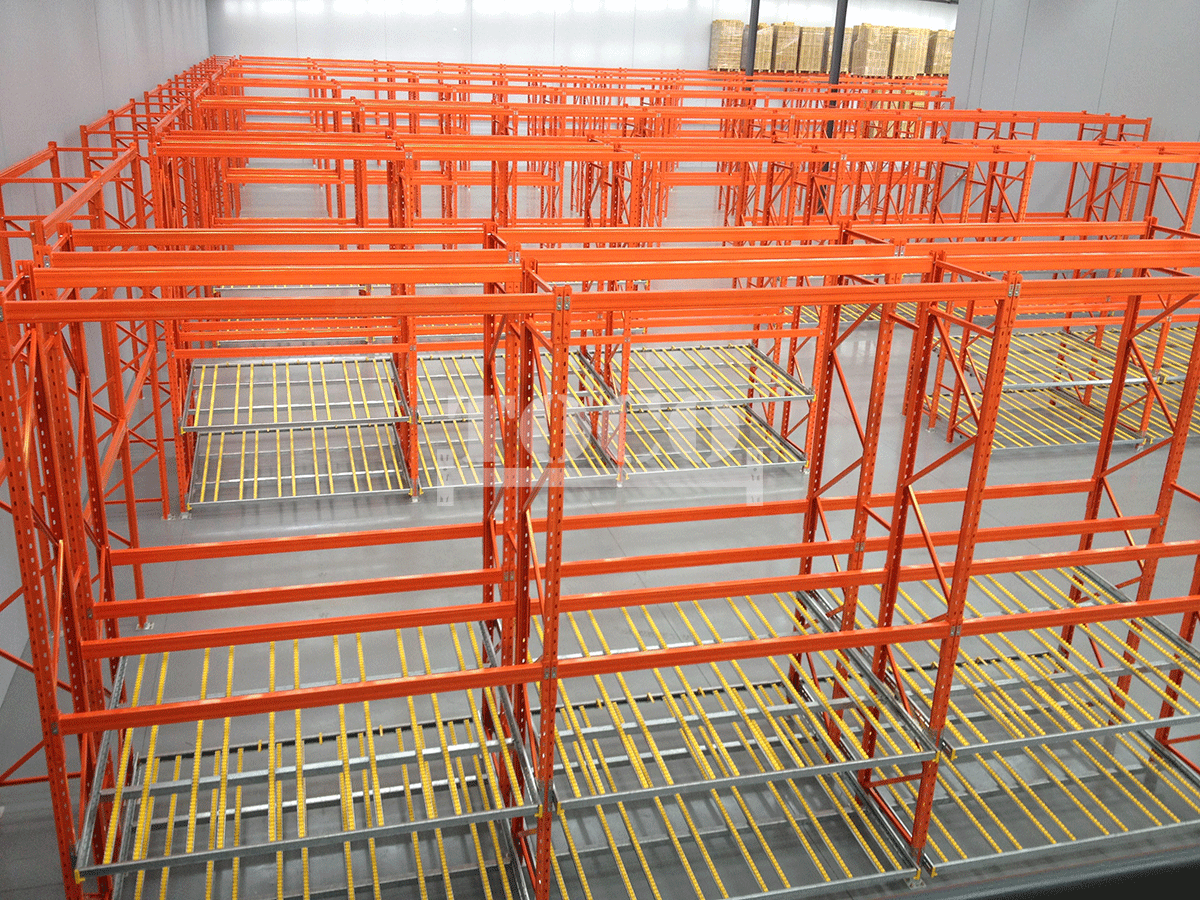

GALLERY
Upright And Beam SPECIFICATIONS
| Upright Number | Width | Depth | Thickness | Load Capacity | |||
| IPRU8015 | 80 | 60 | 1.5 | 6000kg | |||
| IPRU8020 | 80 | 60 | 2.0 | 9400kg | |||
| IPRU9018 | 90 | 70 | 1.8 | 11000kg | |||
| IPRU9020 | 90 | 70 | 2.0 | 12500kg | |||
| IPRU9025 | 90 | 70 | 2.5 | 15000kg | |||
| IPRU1020 | 100 | 70 | 2.0 | 13500kg | |||
| IPRU1025 | 100 | 70 | 2.5 | 16900kg | |||
| IPRU1030 | 100 | 70 | 3.0 | 19000kg | |||
| IPRU1225 | 120 | 95 | 2.5 | 21000kg | |||
| IPRU1230 | 120 | 95 | 3.0 | 25000kg | |||
| IPRU1412 | 140 | 120 | 2.0-3.0 | - | |||
| IPRU1614 | 160 | 140 | 2.0-3.0 | - | |||
| IPRUMISC | Customized Sections ---- Consult with us for more details! | ||||||
| Box Beam Number | Height | Width | Thickness | Hooks |
| IPRB8015 | 80 | 50 | 1.5 | 3 |
| IPRB10015 | 100 | 50 | 1.5 | 3 |
| IPRB11015 | 110 | 50 | 1.5 | 3/4 |
| IPRB12015 | 120 | 50 | 1.5 | 3/4 |
| IPRB14015 | 140 | 50 | 1.5 | 3/4 |
| IPRB16015 | 160 | 50 | 1.5 | 4 |
| IPRB16020 | 160 | 50 | 2 | 4 |
| IPRB18020 | 180 | 50 | 2 | 4 |
MODEL NUMBERS FOR QUICK ORDERING
| Model No. | Pallet Size | Max Weight Per Pallet | Rack Sizes | Storage Levels | Storage Capacity | Notes | ||||||
| T3600ST1210 | 1200 x 1000MM | 1000KG | H3600xL2700xD900 | Ground + 2 | 6 Pallets | Starter Rack | ||||||
| T3600AD1210 | Add-On Rack | |||||||||||
| T4800ST1210 | H4800xL2700xD900 | Ground + 3 | 8 Pallets | Starter Rack | ||||||||
| T4800AD1210 | Add-On Rack | |||||||||||
| T6000ST1210 | H6000xL2700xD900 | Ground + 4 | 10 Pallets | Starter Rack | ||||||||
| T6000AD1210 | Add-On Rack | |||||||||||
| T3600ST0812 | 800 x 1200MM | 1000KG | H3600xL2700xD900 | Ground + 2 | 9 Pallets | Starter Rack | ||||||
| T3600AD0812 | Add-On Rack | |||||||||||
| T4800ST0812 | H4800xL2700xD900 | Ground + 3 | 12 Pallets | Starter Rack | ||||||||
| T4800AD0812 | Add-On Rack | |||||||||||
| T6000ST0812 | H6000xL2700xD900 | Ground + 4 | 15 Pallets | Starter Rack | ||||||||
| T6000AD0812 | Add-On Rack | |||||||||||
| Send Us An Inquiry for Prices and Shipping Now! | ||||||||||||
PALLET RACKING APPLICATIONS
Warehouses with wide variety of products
Industrial pallet racking is suitable for any quantity in varieties.

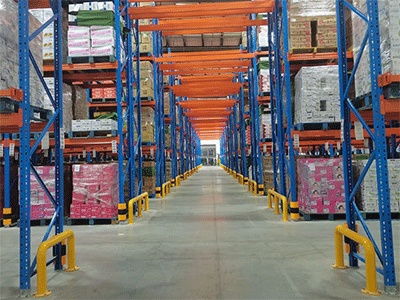

Distribution and Logistic center
Pallet racks are widely used in the warehouses of 3PL providers, ideal for the storage of varied, high-turnover goods.

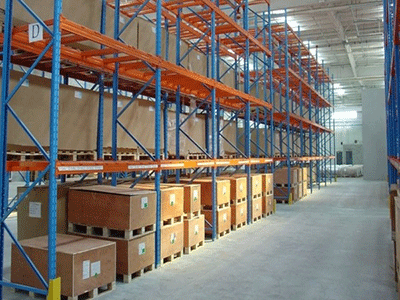

Any size and type of warehouses
TOCO pallet racking can trailor made to suit any storage areas.

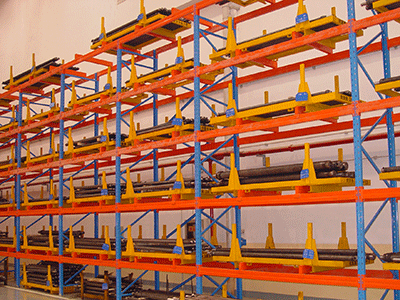

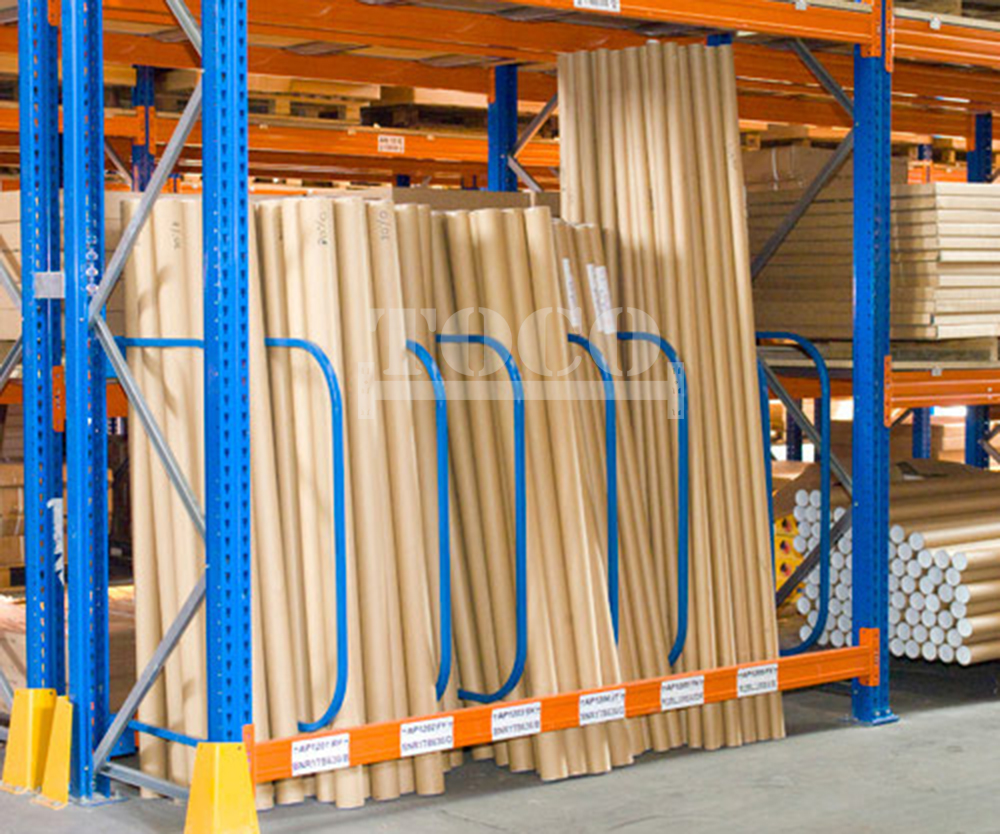

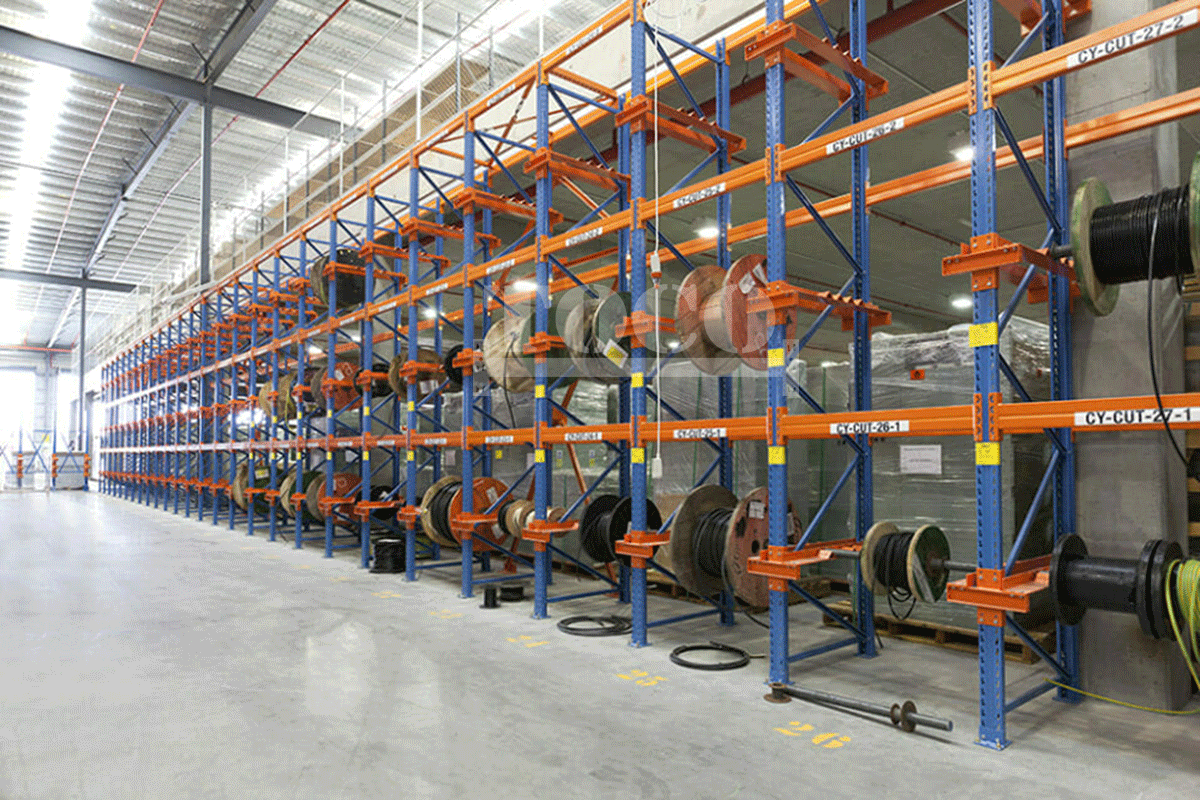

Storage of non-palletised goods
TOCO pallet racking can trailor made to suit any storage areas.

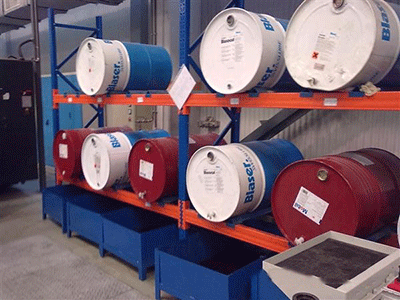

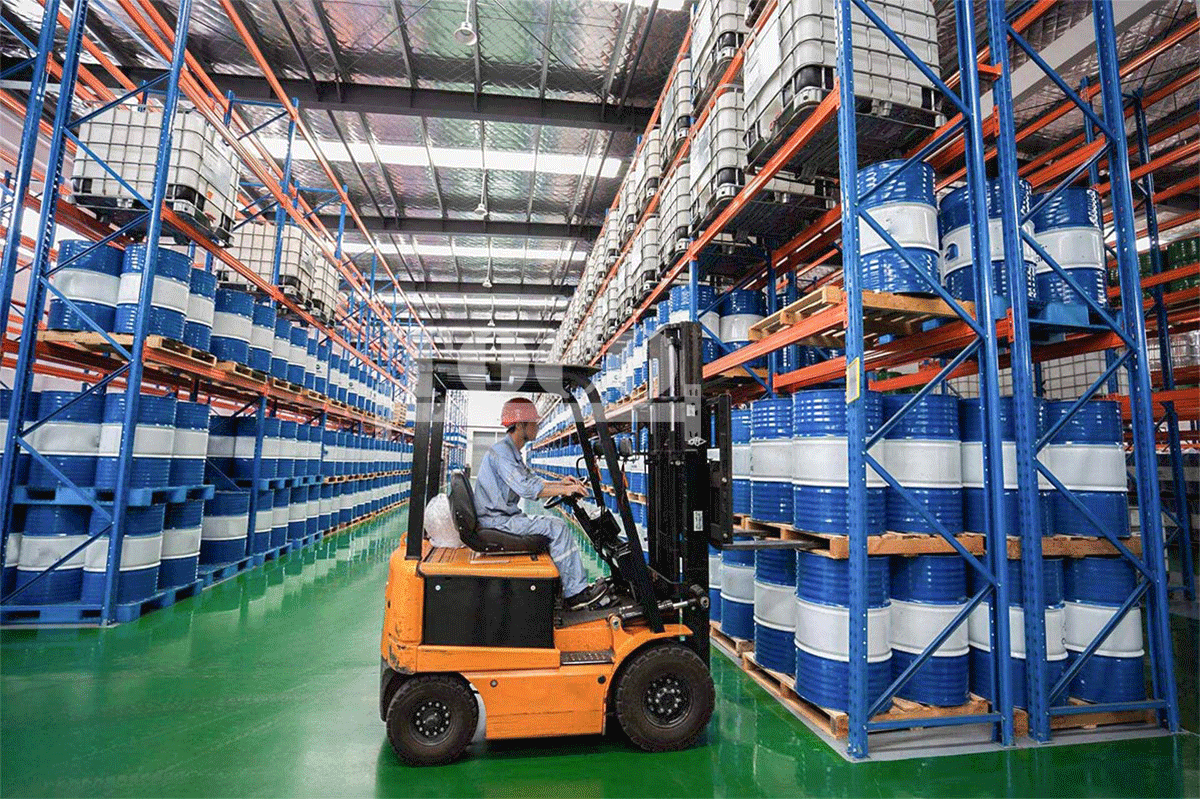

Storage of Oil Drums
Equipped with drum cradles, the pallet racking can store oil drums easily.

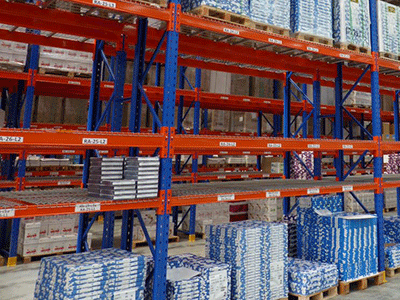

Order picking levels
The lower levels can be equipped with panels to allow picking from racking directly.
CONFIGURATIONS OF PALLET RACKING SYSTEM
Different Storage Solutions as per How It's Configuared

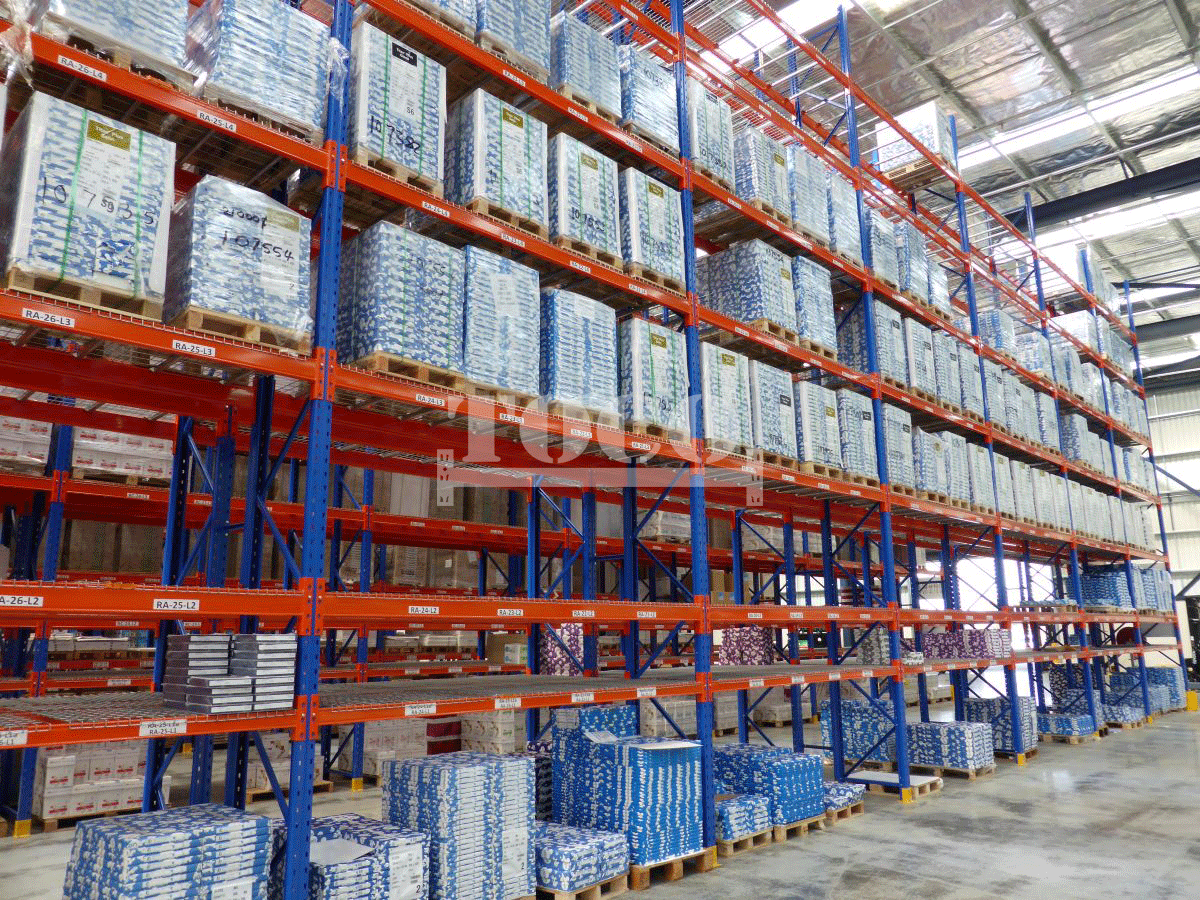

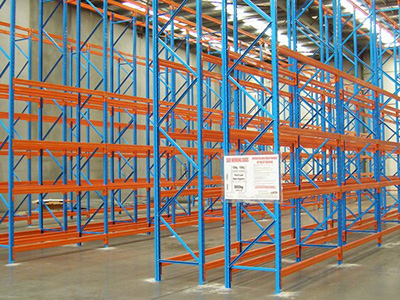

Single Deep Selective Pallet Racks
This is the standard, most commonly used in the warehouses. This racking allows for the storage of one pallet per space, direct access to every unit loads. It is suitable for businesses with many SKUs and few pallets of each one.

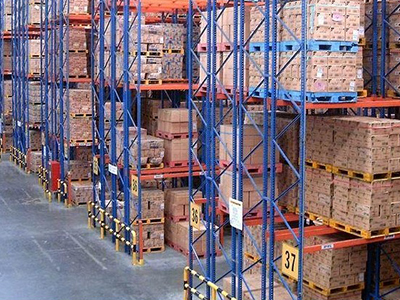

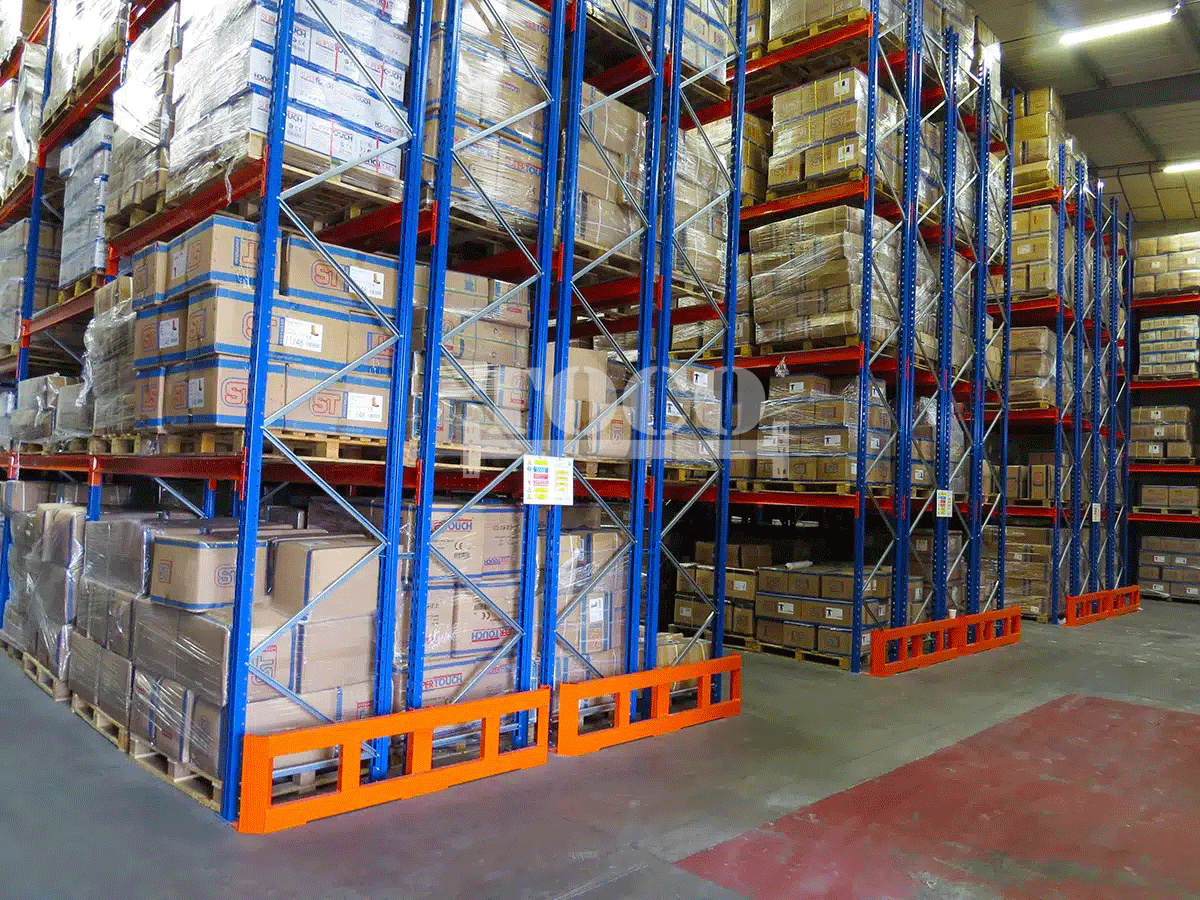

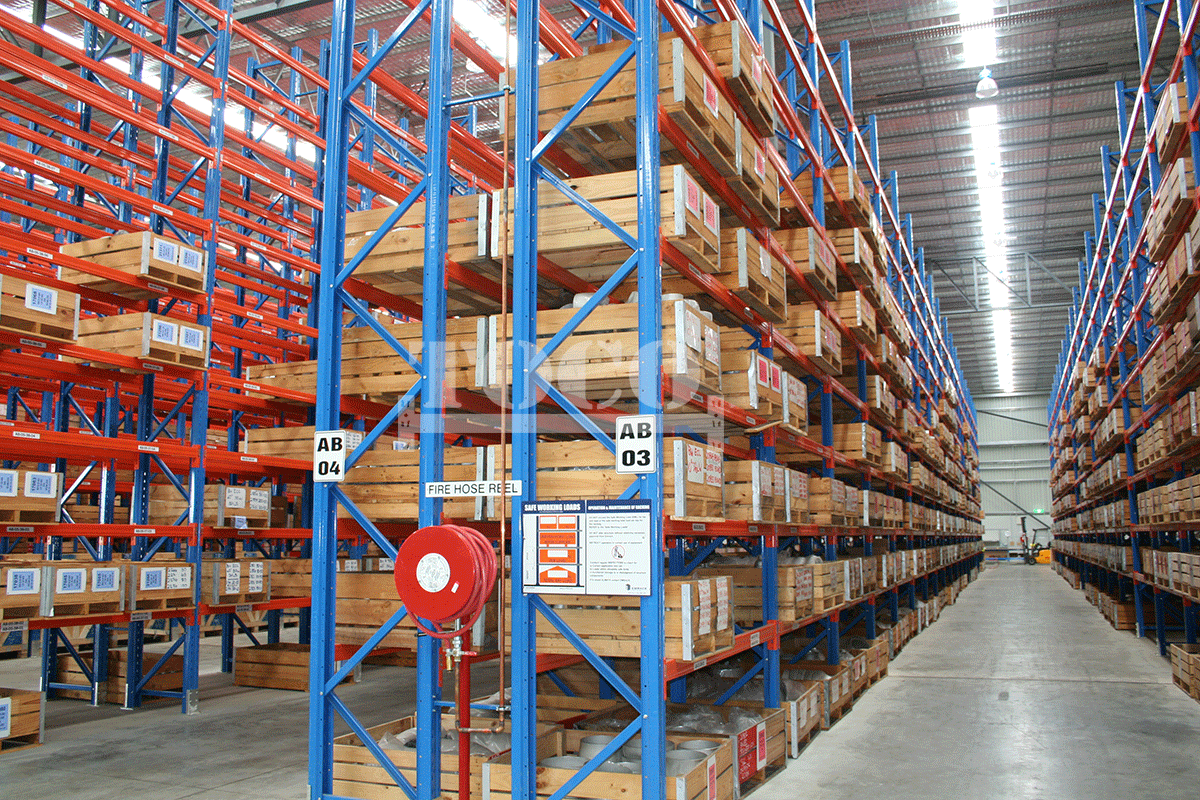

Double Deep Pallet Racks
This adds one more pallet in depth, so less aisles required and storage capacity increased. Teliscopic forks of the forklift is used for this configuration.

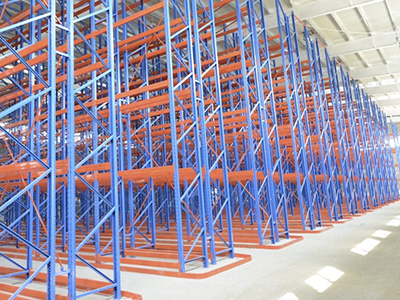

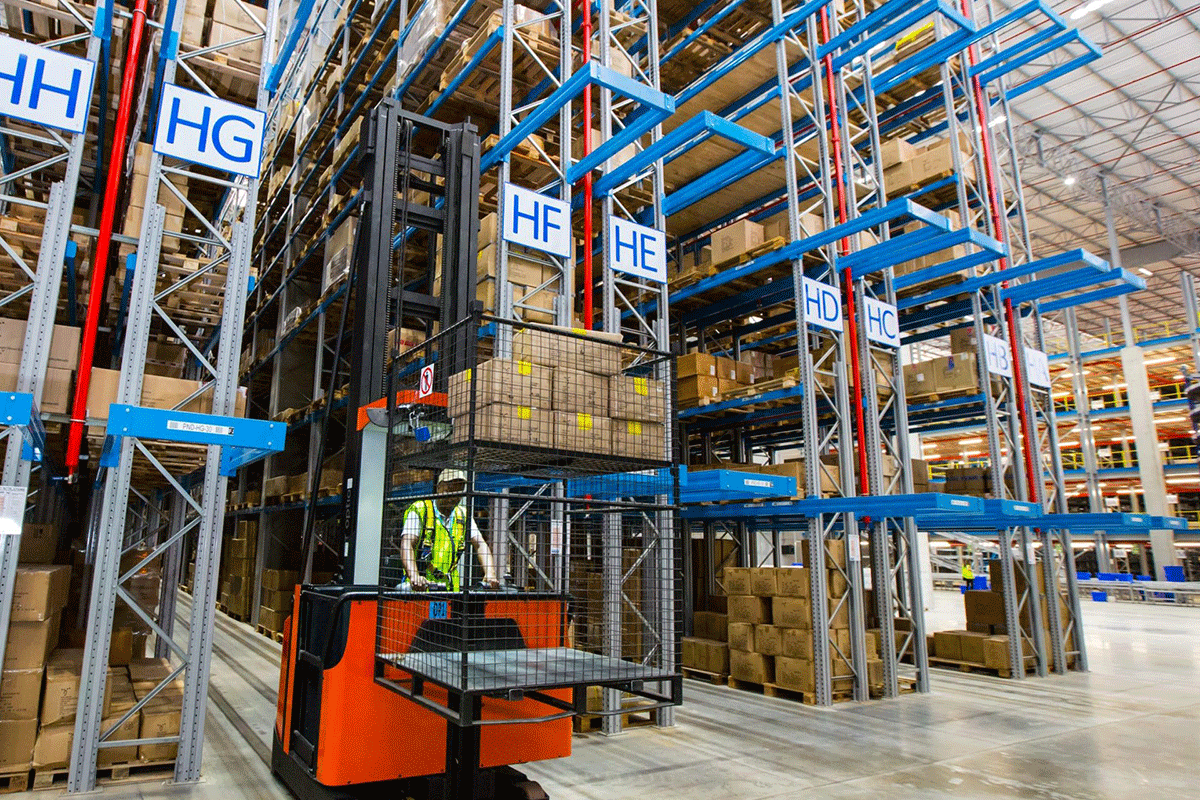

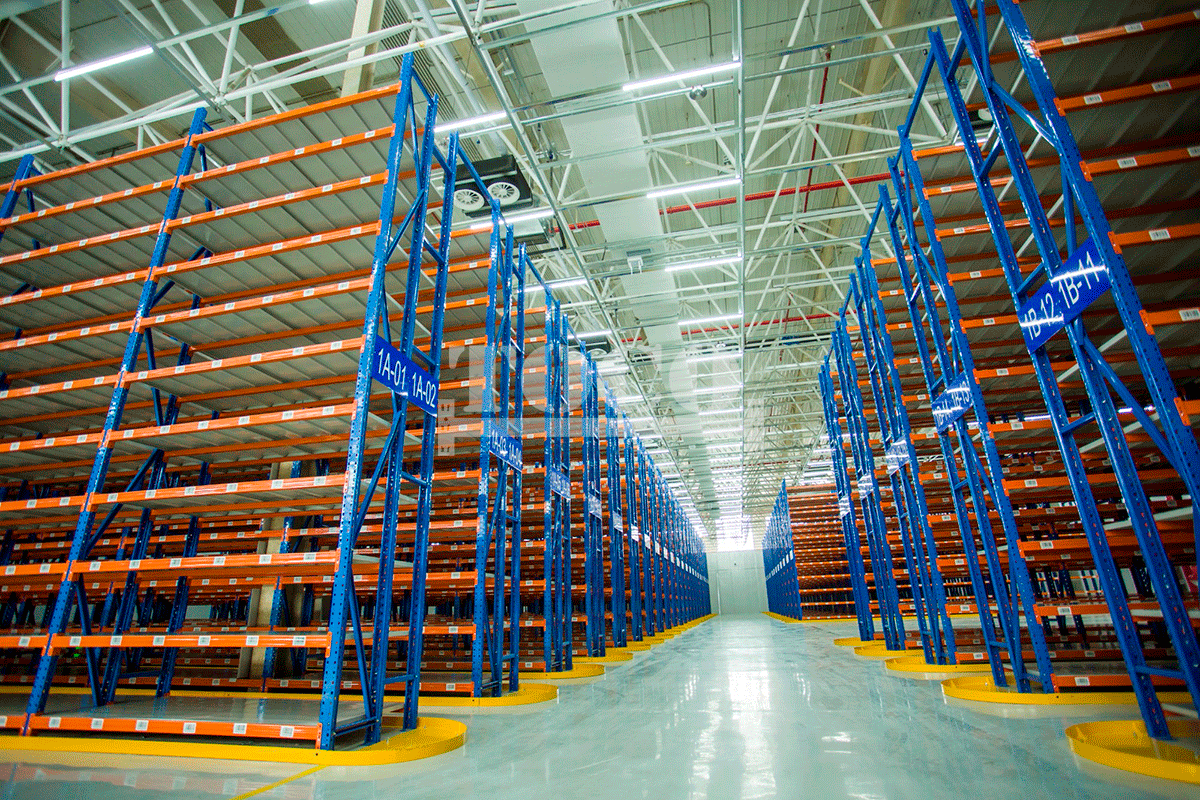

Narrow Aisle Pallet Racks
The aisles of this racking system is narrower up to around 1800mm as per the type of VNA forklifts. It increases storage capacity and still direct access to each pallet.

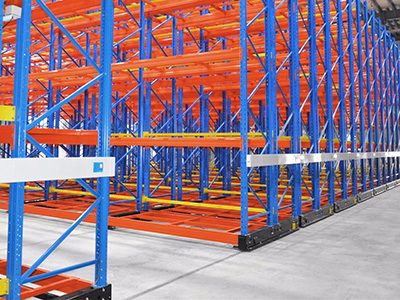

Mobile Pallet Racks
The standard pallet racks are mounted on power-driven bases, so every row of racks are movable. As one working aisle is required, it inceases storage capacity significantly and direct access of each pallet.
Pallet rack with roof
The support structure and roof are added on the top of the pallet racking system. It creates extra storage spaces in very short period of time. With walls added at four sides, it becomes a racking supported warehouse.

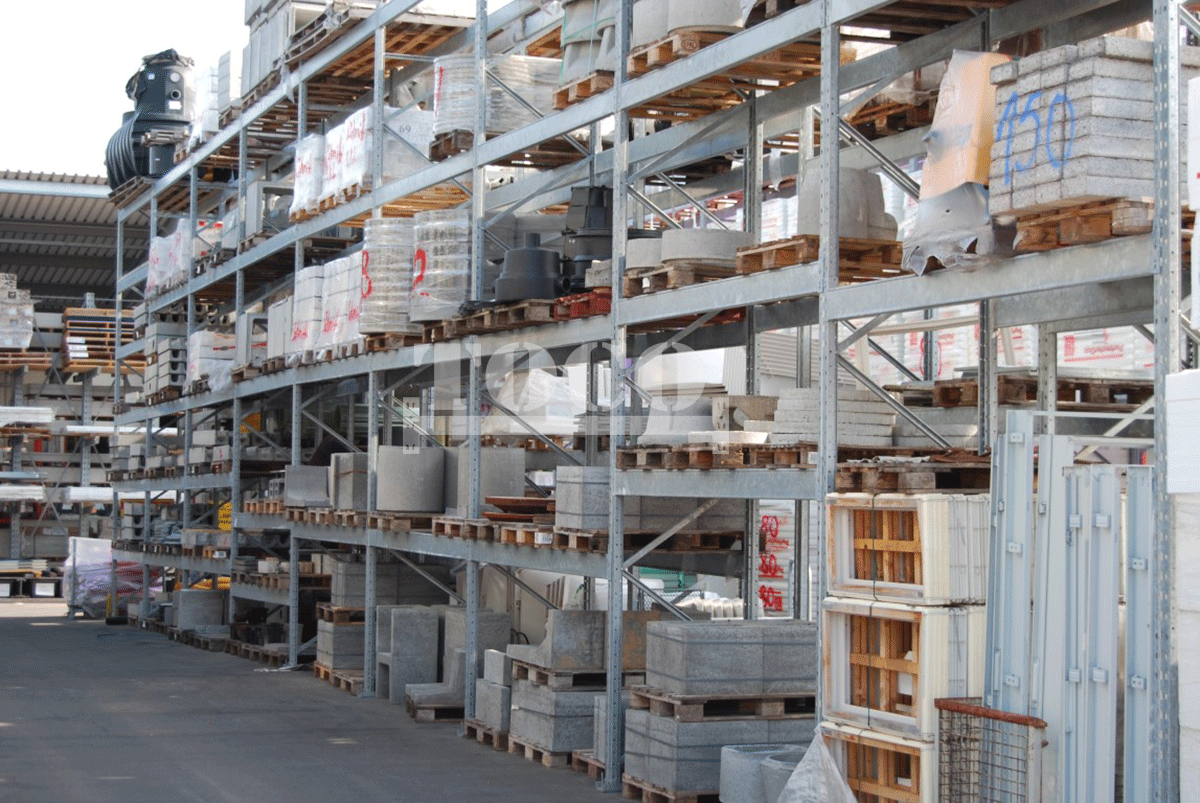

Hot Galvanized Pallet Rack
The racking components went through hot dipped galvanzation, which gives high resistances to rains, sun and winds. The pallet racks are mounted outdoor directly.

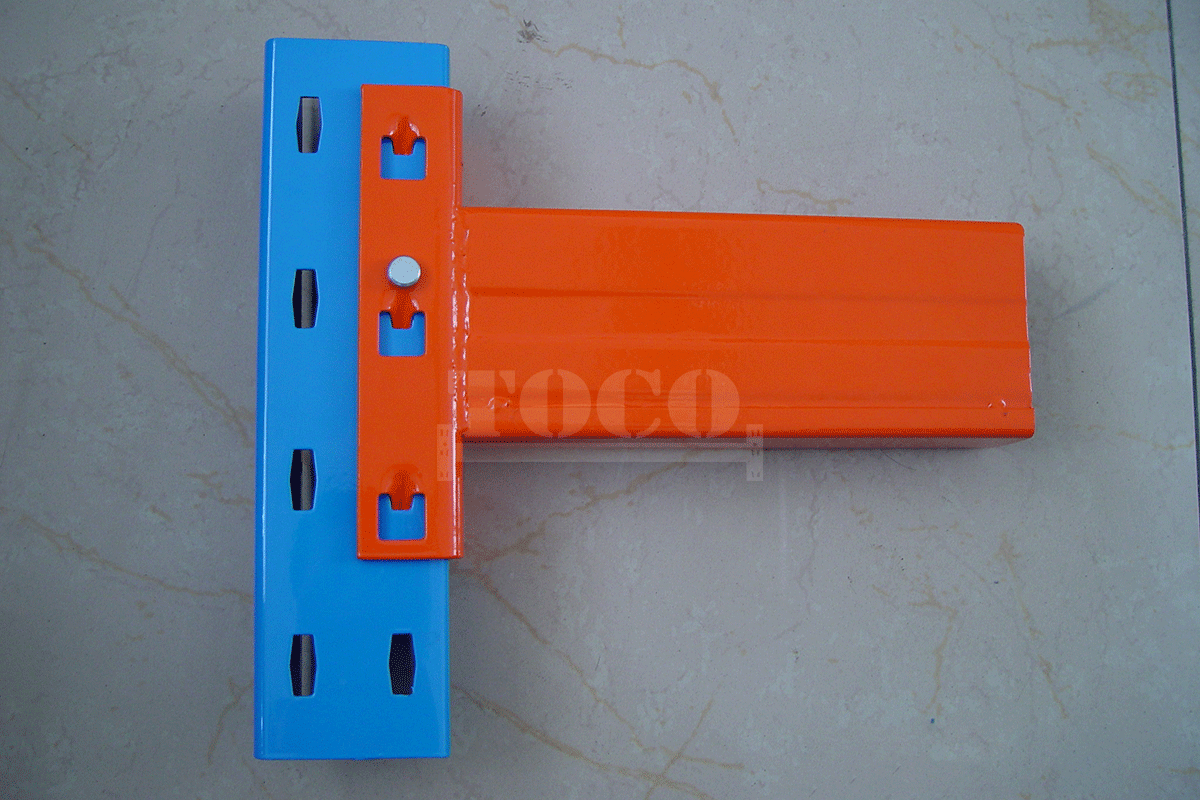

PALLET RACKING COMPONENTS

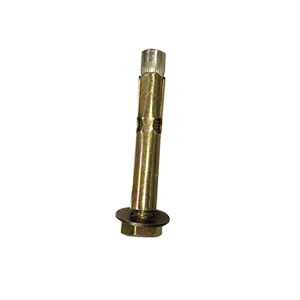

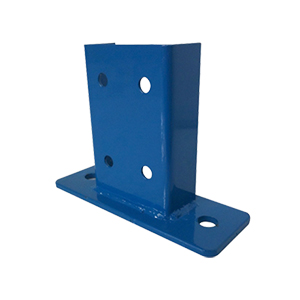

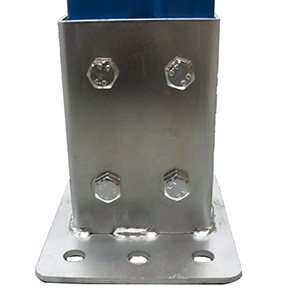

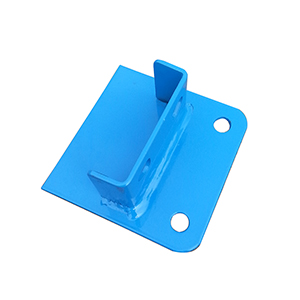

MAIN PARTS

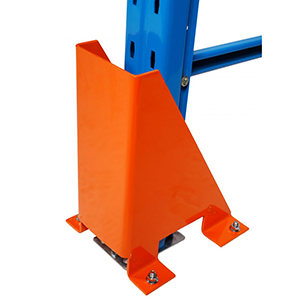

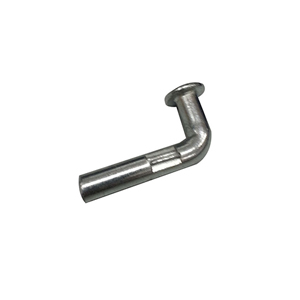

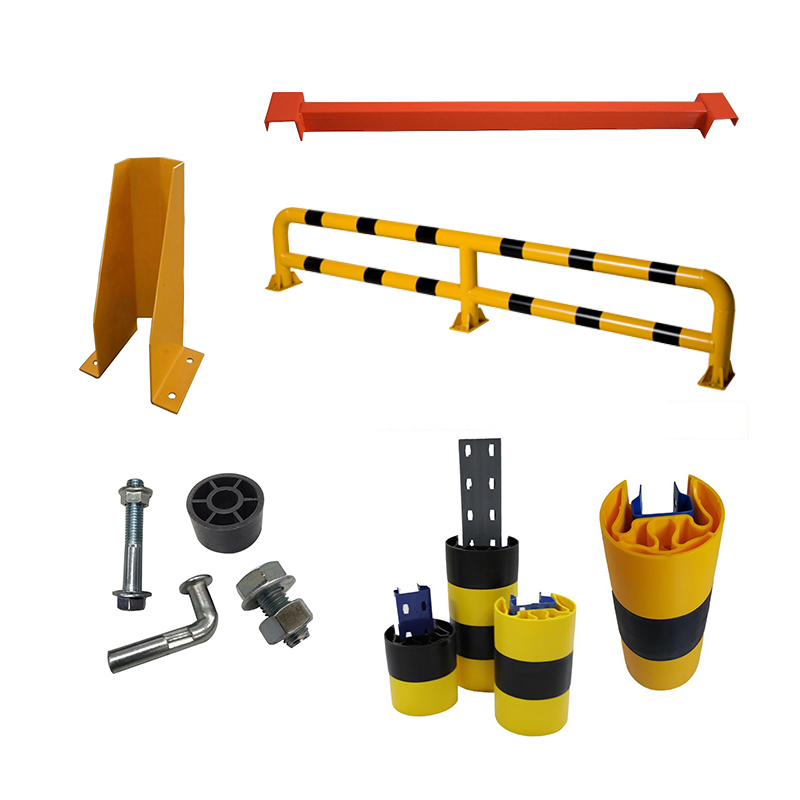

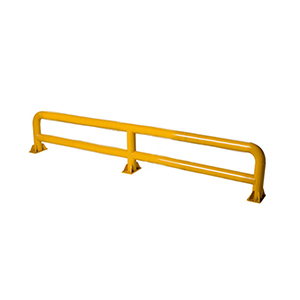

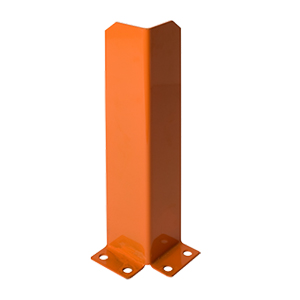

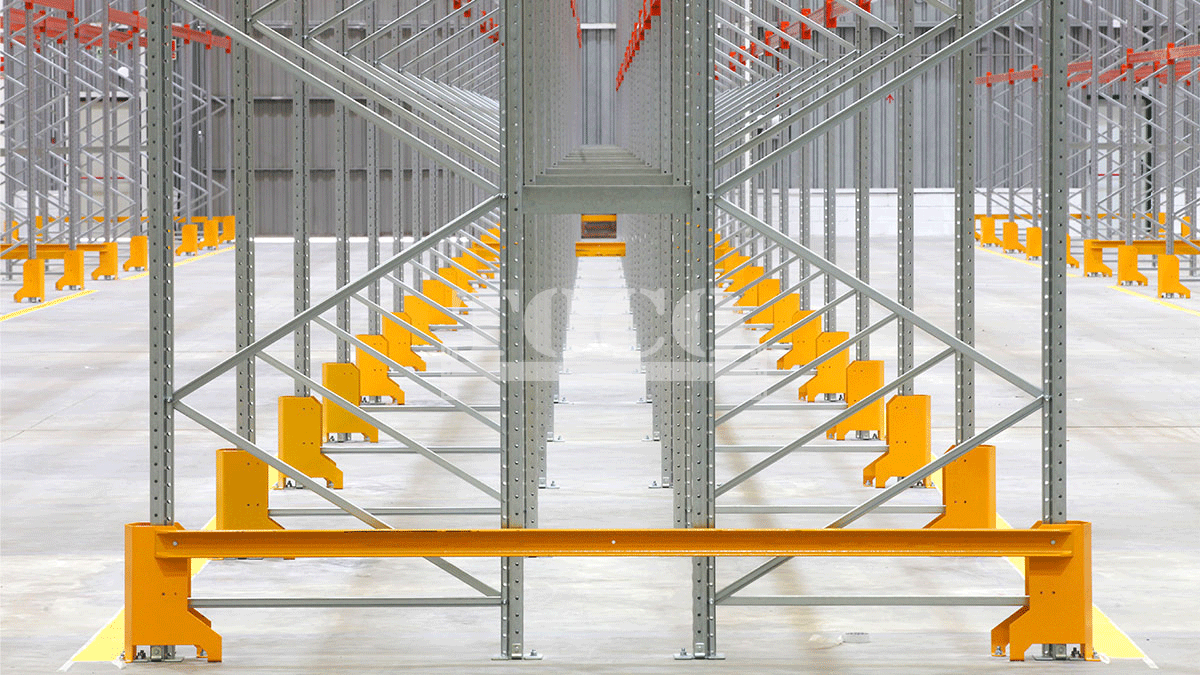

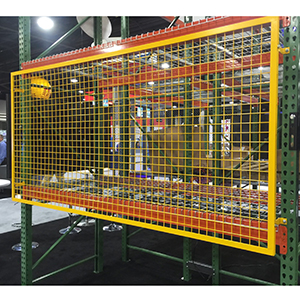

SAFETY MEMBERS
FAQs
1. What are your standard trade terms?
2. How will I install the racking if I buy from you?
3. I cannot find an item on your website, what can I do?
4. I want to get a quote from you, what information do I need to provide?
5. Do you have MOQ(minimum order quantity) requirements?
6. Do you hold stocks?
7. What does TOCO’s after-sales service include?
