ABOUT PRODUCT
The Gravity Conveyor System is a cutting-edge technology that automates the movement of goods within a warehouse or distribution center.
It utilizes robotic shuttles to transport pallets or bins along designated tracks, increasing efficiency, maximizing storage capacity, and reducing labor costs. This system is ideal for high-density storage and high-throughput operations, making it a valuable asset for modern logistics and supply chain management.
Four way pallet shuttle is a brand new technology of automatic compact storage system, which is involved from standard pallet shuttle. It can move in four direction on its own, and with lifter it can switch to other storage levels.

FEATURES OF GRAVITY ROLLER CONVEYOR SYSTEM

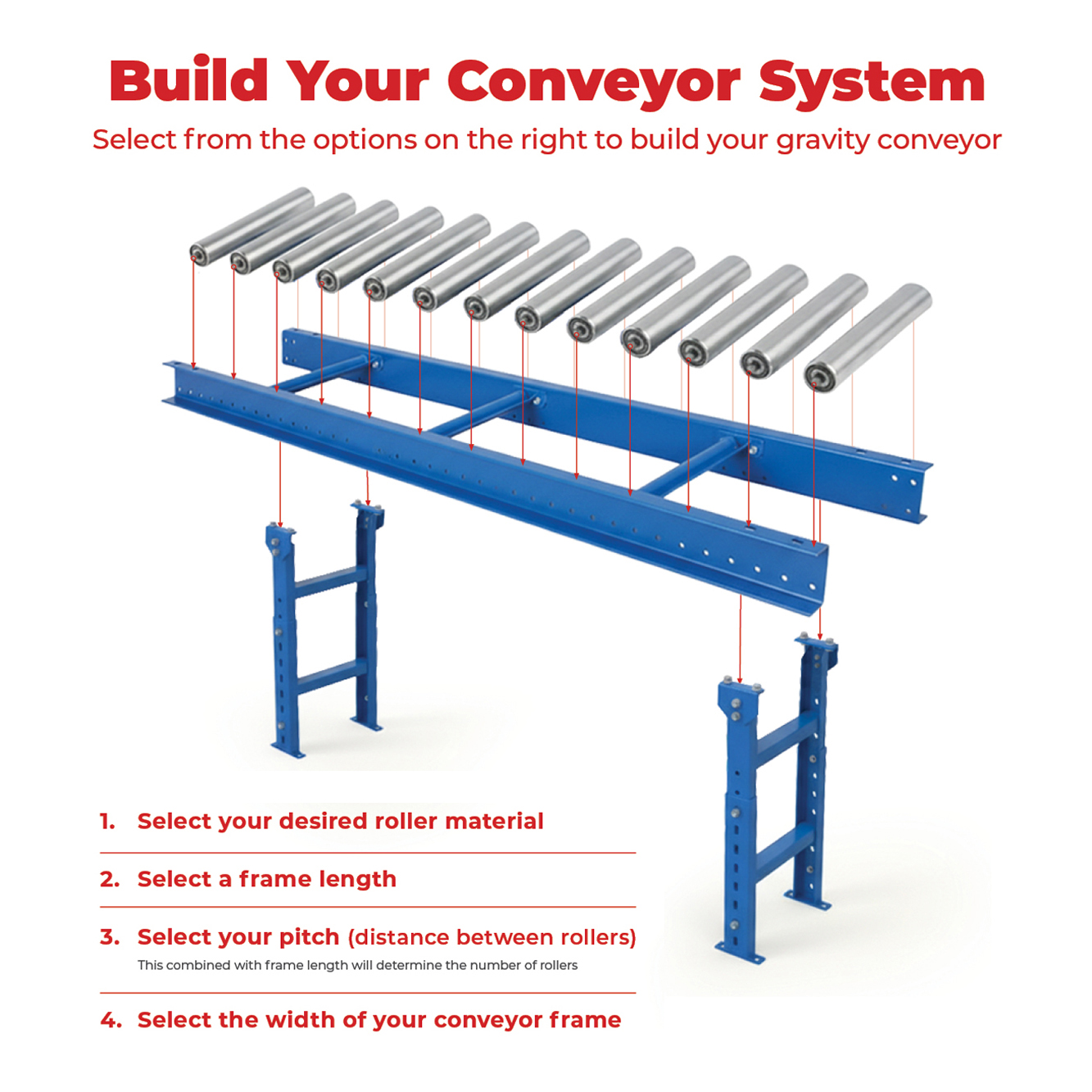

CONVEYOR SYSTEM MODELS & SPECIFICATIONS

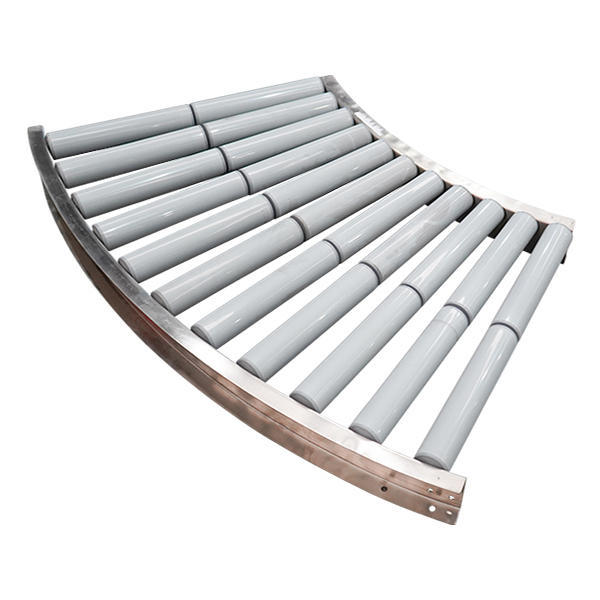

| Conveyor Roller | ||||||||||
| ID | Model Number | Roller Type | Length | Diameter | Capacity | |||||
| 1 | TCSR300N | Nylon | 300mm | 50mm | 40kg | |||||
| 2 | TCSR450N | 450mm | 50mm | 30kg | ||||||
| 3 | TCSR600N | 600mm | 50mm | 20kg | ||||||
| 4 | TCSR300P | PU | 300mm | 60mm | 100kg | |||||
| 5 | TCSR450P | 450mm | 60mm | 100kg | ||||||
| 6 | TCSR600P | 600mm | 60mm | 100kg | ||||||
| 7 | TCSR300G | Galvanized Steel | 300mm | 50mm | 100kg | |||||
| 8 | TCSR450G | 450mm | 50mm | 100kg | ||||||
| 9 | TCSR600G | 600mm | 50mm | 100kg | ||||||
| Conveyor Stand Upright | ||||||||||
| ID | Model No. | Width | Load Capacity | Height Range | Finish | |||||
| 1 | TCSU300C | 300mm | 400kg | 700-1000mm | Powder Coated | |||||
| 2 | TCSU450C | 450mm | ||||||||
| 3 | TCSU600C | 600mm | ||||||||
| 4 | TCSU600S | 600mm | 500kg | Stainless Steel 304 | ||||||

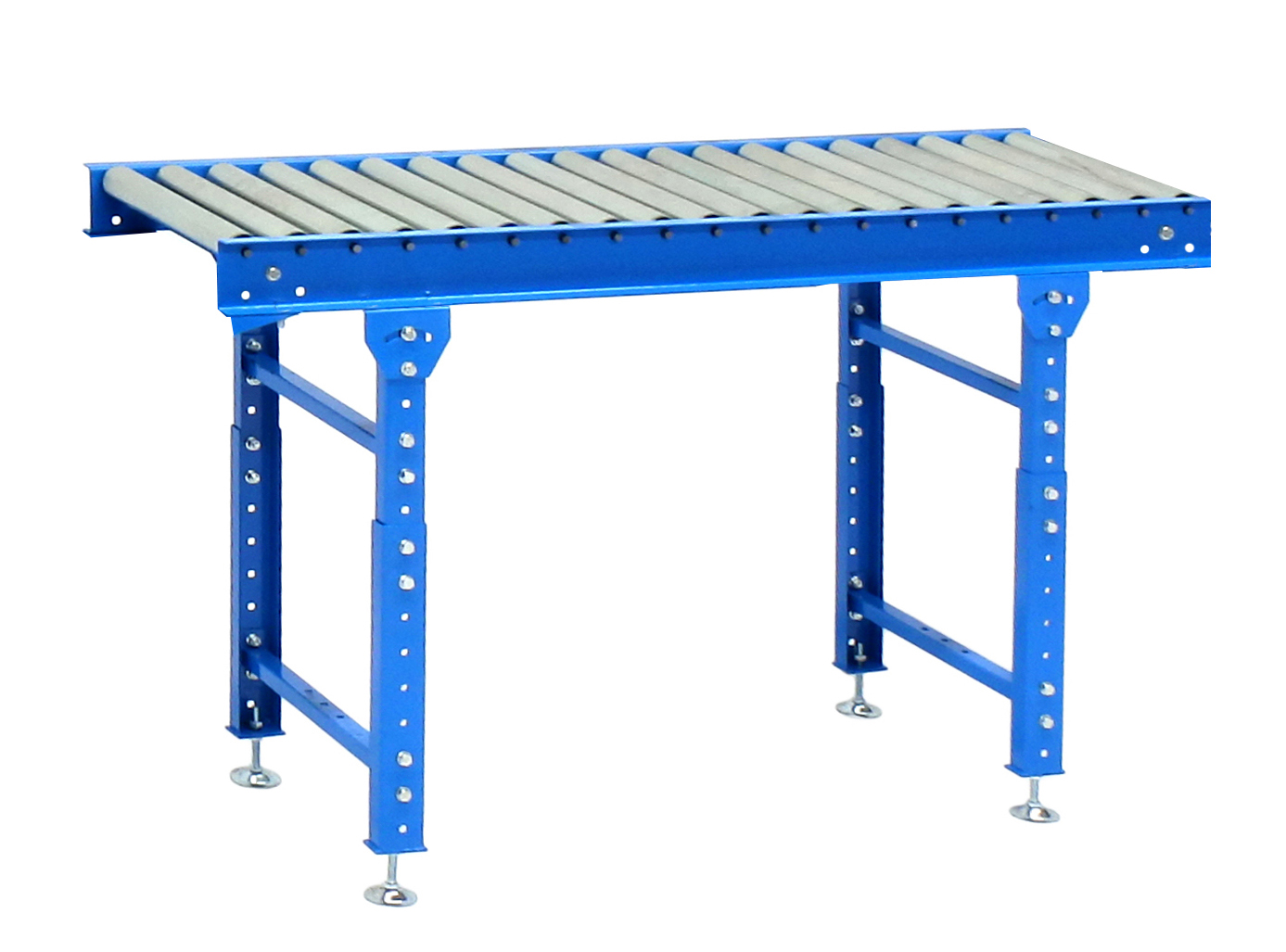

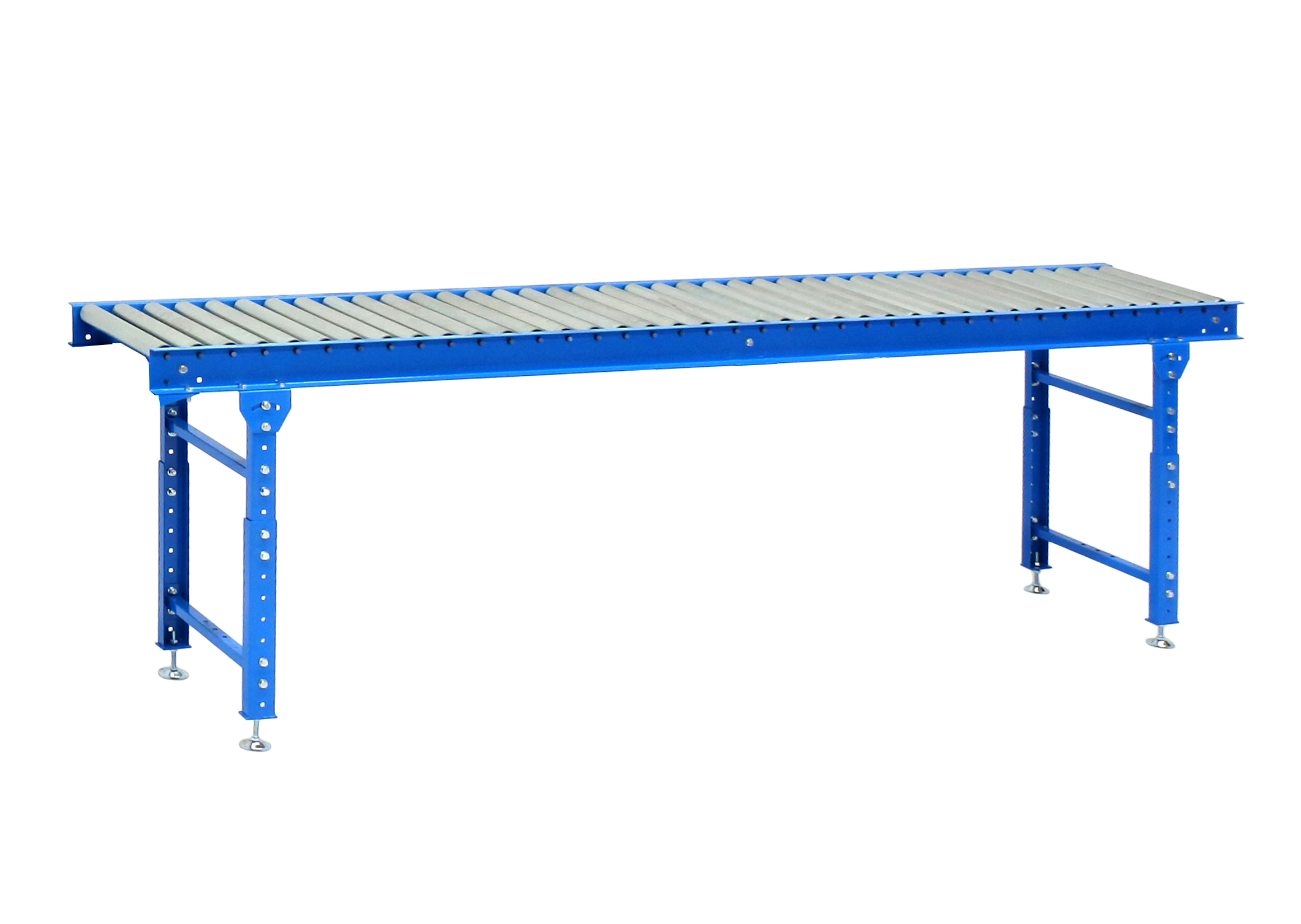

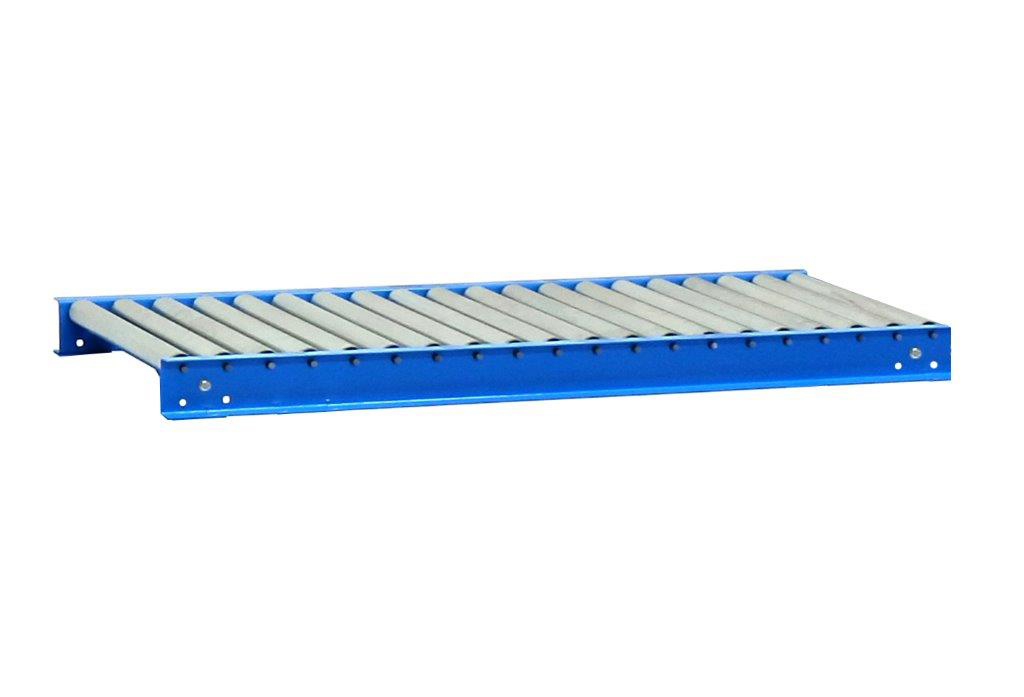

| Gravity Conveyor Frame | ||||||||||
| ID | Model No. | Length | Width | Load Capacity | Finish | |||||
| 1 | TCSF1530P | 1500 | 300 | 400-800kg, as per quantity of stand uprights | Powder Coated | |||||
| 2 | TCSF1545P | 450 | ||||||||
| 3 | TCSF1560P | 600 | ||||||||
| 4 | TCSF3030P | 3000 | 300 | |||||||
| 5 | TCSF3045P | 450 | ||||||||
| 6 | TCSF3060P | 600 | ||||||||
| 7 | TCSF1560S | 1500 | 600 | Stainless Steel 304 | ||||||
| 8 | TCSF3060S | 3000 | 600 | |||||||
